Individual hose record
4652746 Hose Repair Specifications
Excavator · Hitachi · ZX190W-5N · Attachments – Breaker
Finished length1,600 mm
Locate this hose

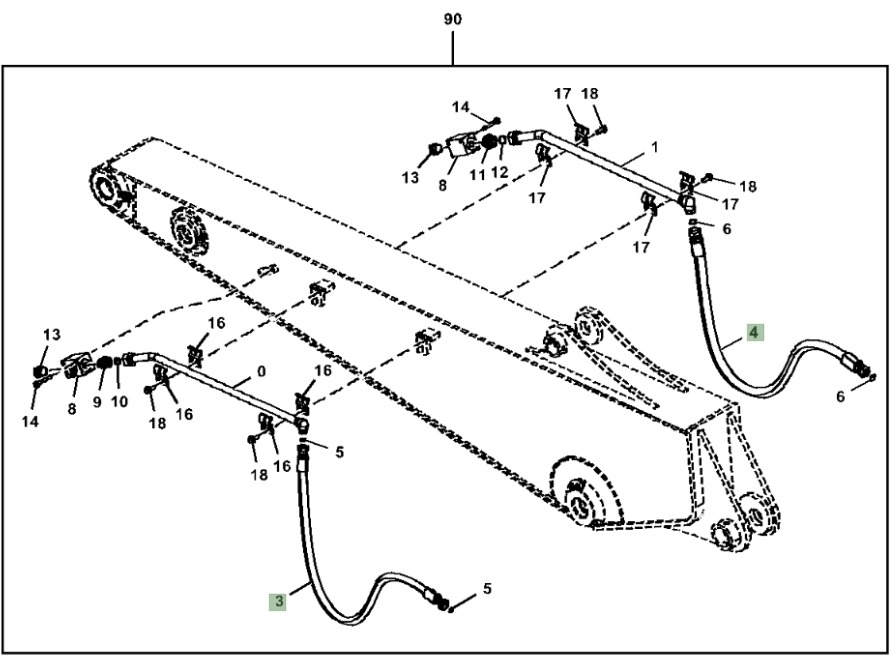

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 4652746 before removing the hose.
Repair specifications
- Part number
- 4652746
- Diagram pipe number
- 4
- Installation route
- 小臂破碎器截止阀右
- Hose specification
- DN25;4SP-16;35Mpa
- Finished length
- 1,600 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
