Individual hose record

4470393 Hose Repair Specifications

Excavator · Hitachi · ZX225USLC-3 · Attachments

Finished length350 mm

Locate this hose

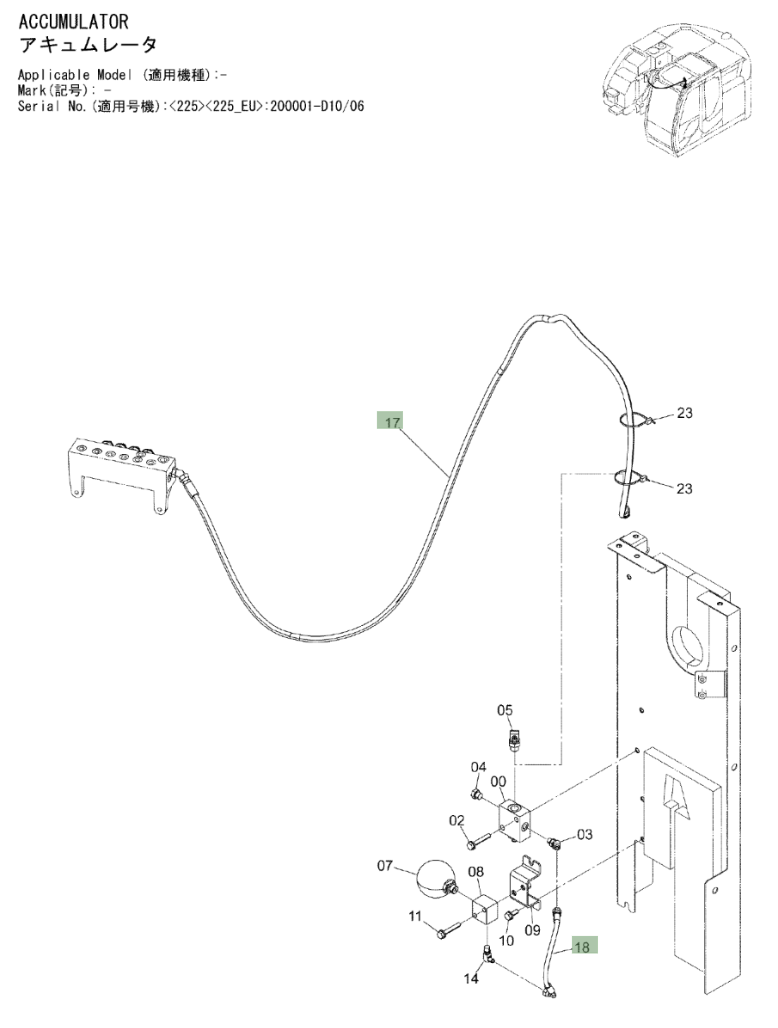

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 4470393 before removing the hose.

Hitachi ZX225USLC-3 installation diagram showing hydraulic hose 4470393 at Pipe No. 18 — Hitachi ZX225USLC-3Part 4470393 · Pipe No. 18Open full-size diagram

Repair specifications

Part number: 4470393
Diagram pipe number: 18
Installation route: 蓄能器~过渡阀块(蓄能器)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 350 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 83

4671343

Installation route: 分配阀下~

Length: 1,500 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 51

4458098

Installation route: 控制阀(辅助)~过渡阀块(辅助)

Length: 240 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 41

4442331

Installation route: 流速切换阀~电磁阀(流速切换)

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 79A

4668885

Installation route: 中转接头~流速切换阀

Length: 2,700 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
