Individual hose record

4671343 Hose Repair Specifications

Excavator · Hitachi · ZX225USLC-3 · Attachments

Finished length1,500 mm

Locate this hose

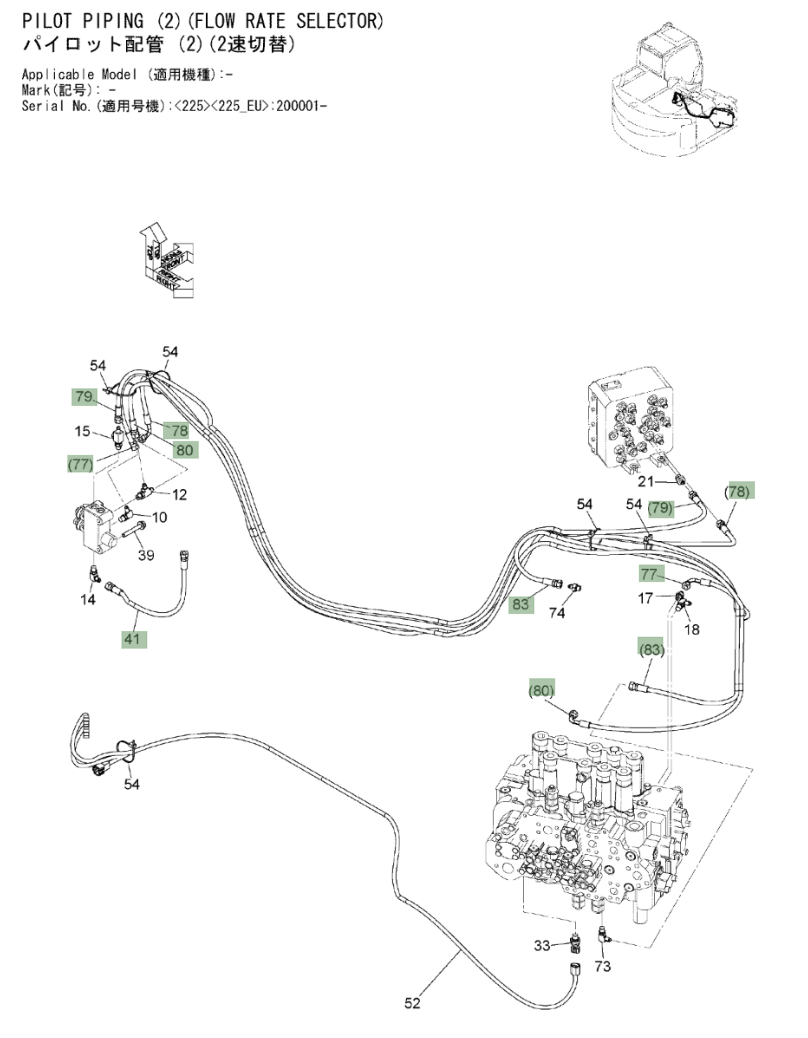

Installation diagram — Pipe No. 83

Locate Pipe No. 83 in the diagram, then confirm part number 4671343 before removing the hose.

Hitachi ZX225USLC-3 installation diagram showing hydraulic hose 4671343 at Pipe No. 83 — Hitachi ZX225USLC-3Part 4671343 · Pipe No. 83Open full-size diagram

Repair specifications

Part number: 4671343
Diagram pipe number: 83
Installation route: 分配阀下~
Hose specification: DN6;1SN-4;7Mpa
Finished length: 1,500 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
