Individual hose record
KBJ12530 Hose Repair Specifications
Excavator · Case · CX300B · Control Valve
Finished length720 mm
Locate this hose

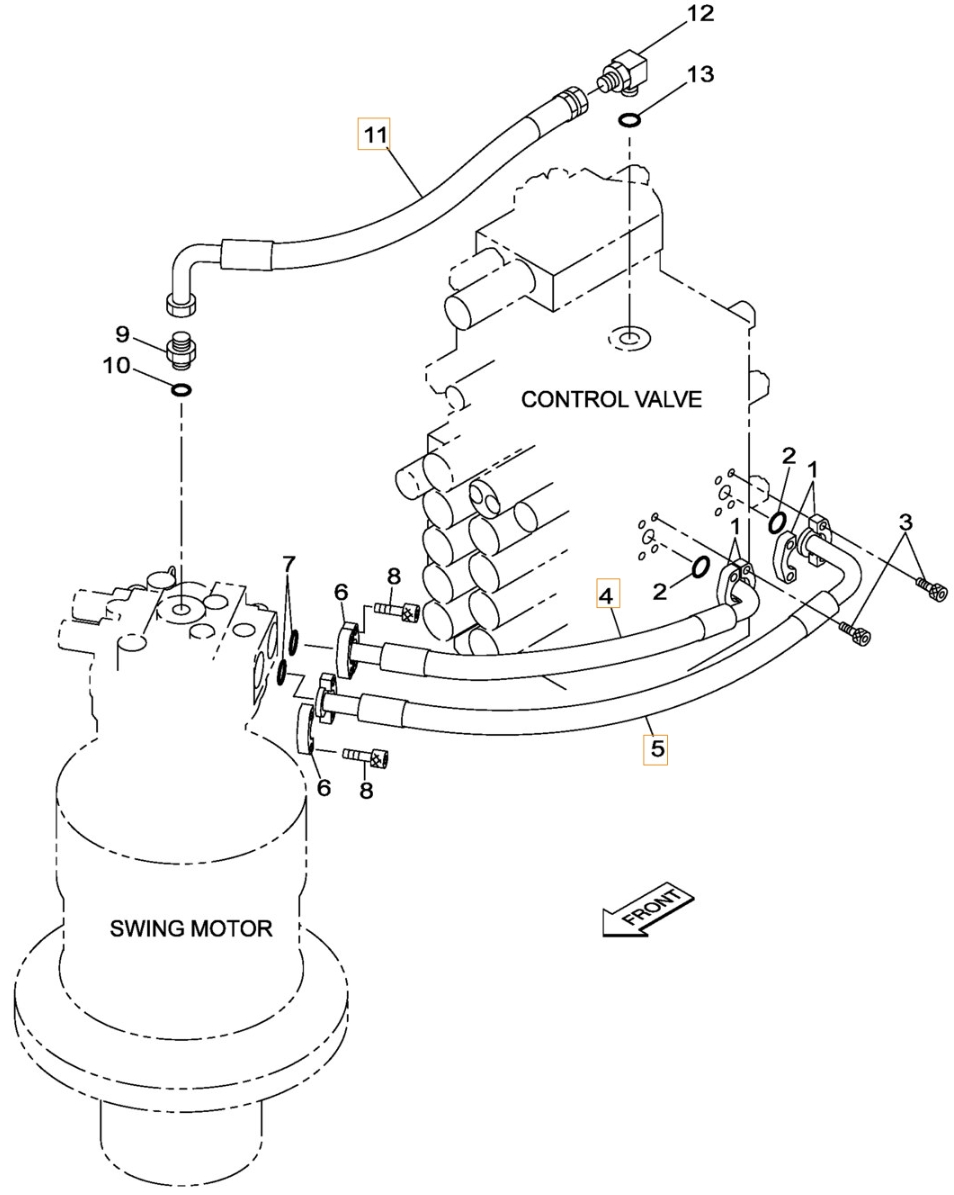

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number KBJ12530 before removing the hose.
Repair specifications
- Part number
- KBJ12530
- Diagram pipe number
- 4
- Installation route
- 分配阀左~回转马达右
- Hose specification
- DN25;4SP-16;32.5MPa
- Finished length
- 720 mm
- Working pressure
- 32.5 MPa
- Left fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
- Right fitting
- 90° light-series flangeOriginal Chinese: 90°法兰-轻型
- Quantity
- 1
