Individual hose record
9286090 Hose Repair Specifications
Excavator · Hitachi · ZX190W-3 · Attachments – Breaker
Finished length450 mm
Locate this hose

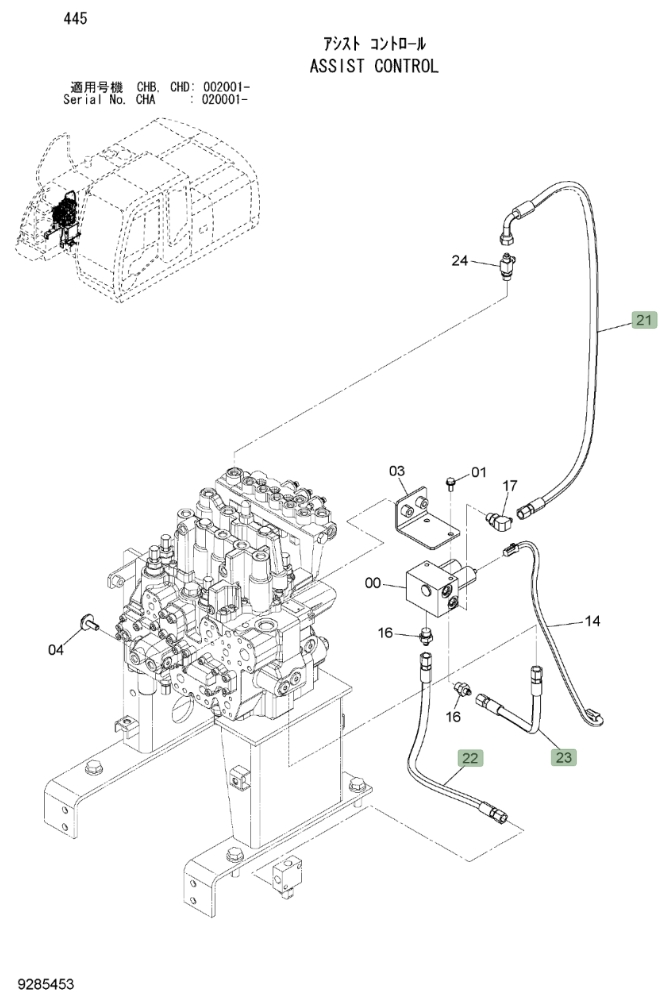

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number 9286090 before removing the hose.
Repair specifications
- Part number
- 9286090
- Diagram pipe number
- 22
- Installation route
- 电磁阀液压管路
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 450 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
