Individual hose record
4665730 Hose Repair Specifications
Excavator · Hitachi · ZX190W-3 · Attachments – Breaker
Finished length3,100 mm
Locate this hose

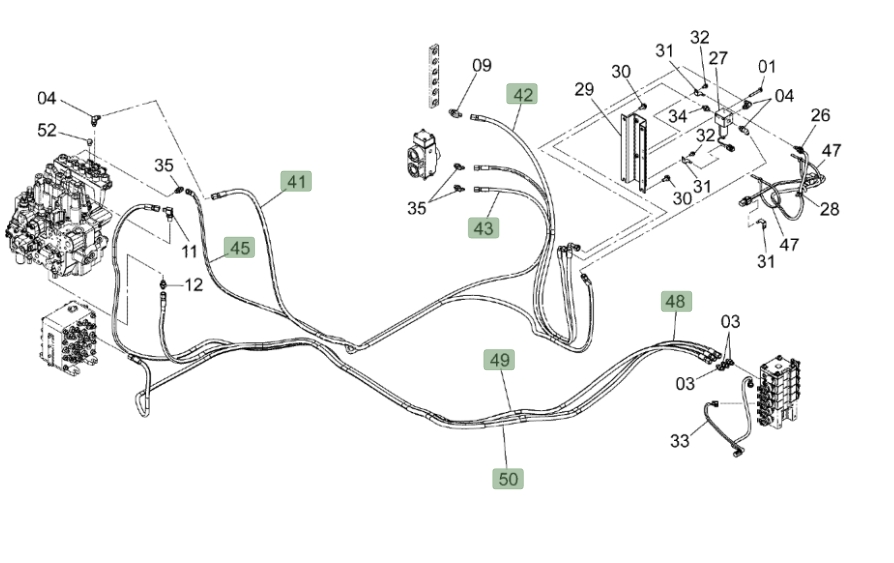

Installation diagram — Pipe No. 41
Locate Pipe No. 41 in the diagram, then confirm part number 4665730 before removing the hose.
Repair specifications
- Part number
- 4665730
- Diagram pipe number
- 41
- Installation route
- 电磁阀~电磁阀(破碎器)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 3,100 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
