Individual hose record
4660514 Hose Repair Specifications
Excavator · Hitachi · ZX245USLC-6N · Attachments – Breaker
Finished length300 mm
Locate this hose

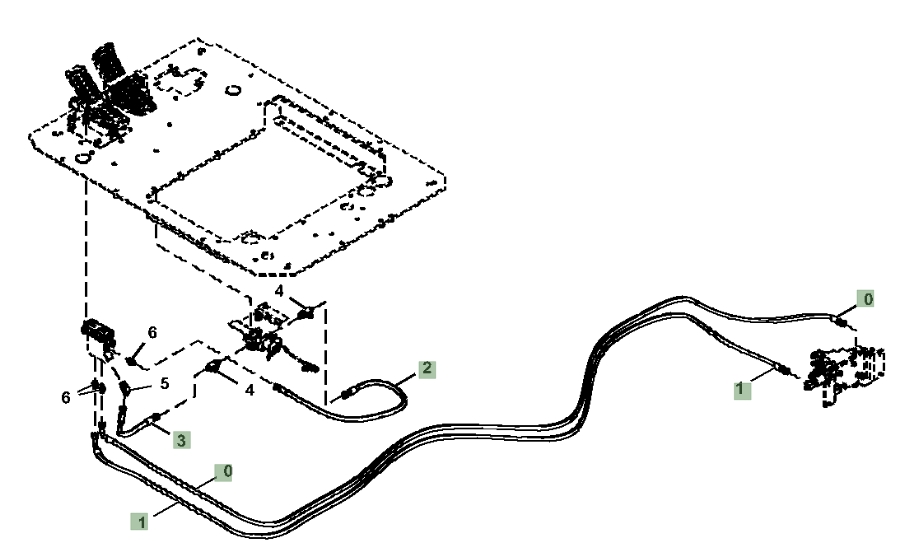

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 4660514 before removing the hose.
Repair specifications
- Part number
- 4660514
- Diagram pipe number
- 3
- Installation route
- 破碎器踏板~进回油阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 300 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
