Individual hose record
4678895 Hose Repair Specifications
Excavator · Hitachi · ZX245USLC-6N · Attachments – Breaker
Finished length510 mm
Locate this hose

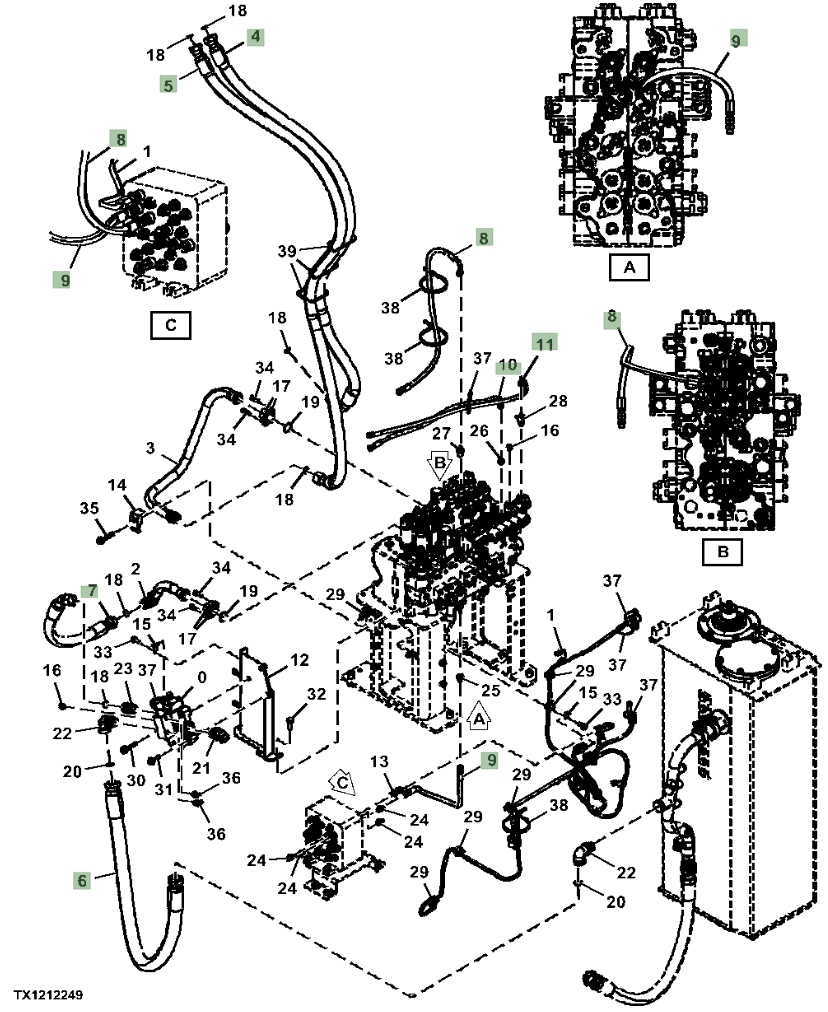

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 4678895 before removing the hose.
Repair specifications
- Part number
- 4678895
- Diagram pipe number
- 9
- Installation route
- 中转接头~分配阀下
- Hose specification
- DN10;1SN-6;18MPa
- Finished length
- 510 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥双六角
- Right fitting
- 美制内螺纹74°内锥双六角
- Quantity
- 1
