Individual hose record
4628532 Hose Repair Specifications
Excavator · Hitachi · ZX245USLC-6N · Attachments – Breaker
Finished length950 mm
Locate this hose

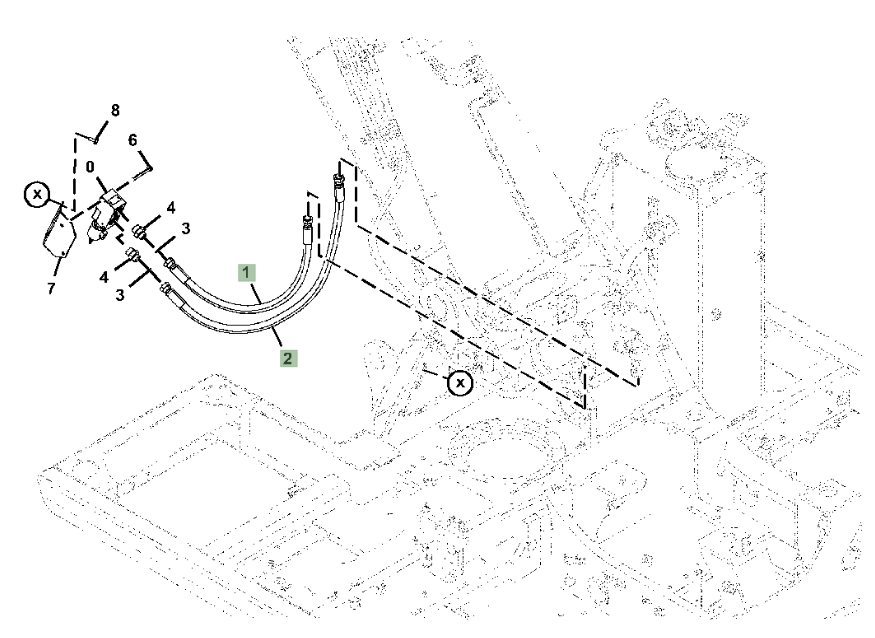

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 4628532 before removing the hose.
Repair specifications
- Part number
- 4628532
- Diagram pipe number
- 1
- Installation route
- 大臂(后段)~电磁阀(大臂下)
- Hose specification
- DN19;4SH-12;42MPa
- Finished length
- 950 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
