Individual hose record
4250888 Hose Repair Specifications
Excavator · Hitachi · ZX370 · Attachments – Breaker
Finished length1,200 mm
Locate this hose

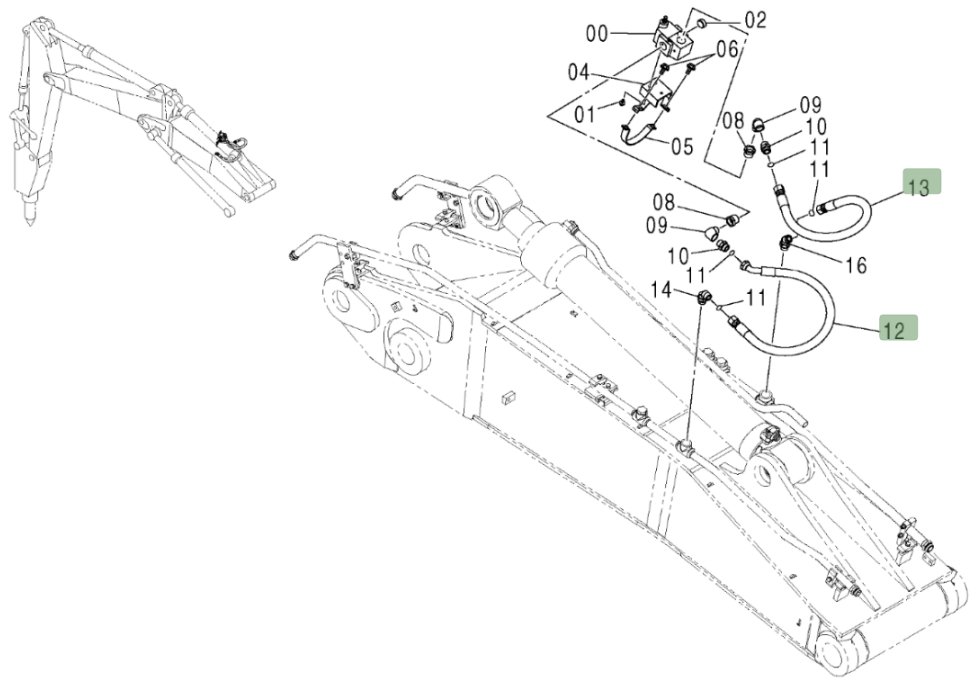

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number 4250888 before removing the hose.
Repair specifications
- Part number
- 4250888
- Diagram pipe number
- 13
- Installation route
- 大臂(后段)~卸压安全阀(破碎器)
- Hose specification
- DN25;4SH-16;34.5Mpa
- Finished length
- 1,200 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
