4270447 Hose Repair Specifications

Excavator · Hitachi · ZX370 · Attachments – Breaker

Finished length3,200 mm

Locate this hose

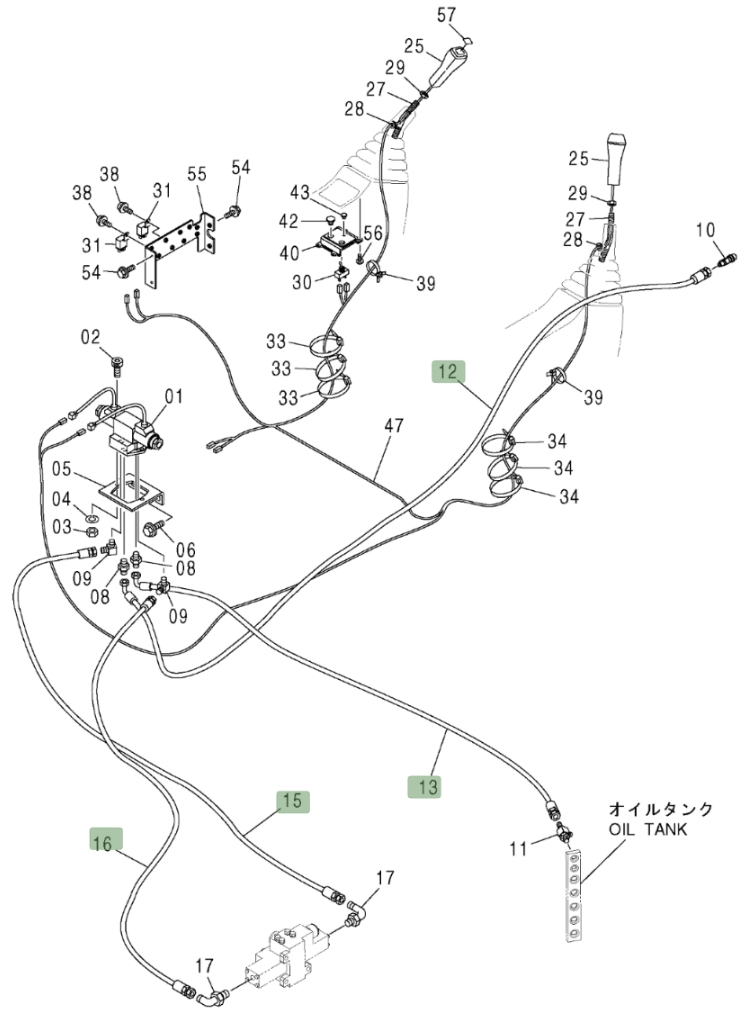

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 4270447 before removing the hose.

Hitachi ZX370 installation diagram showing hydraulic hose 4270447 at Pipe No. 15 — **Hitachi ZX370**Part 4270447 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: 4270447
Diagram pipe number: 15
Installation route: 控制阀(破碎器)~电磁阀(破碎器)
Hose specification: DN10;1SN-6;7Mpa
Finished length: 3,200 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
