Individual hose record

159074A1 Hose Repair Specifications

Excavator · Case · CX180 · Hydraulic Pump

Finished length1,850 mm

Locate this hose

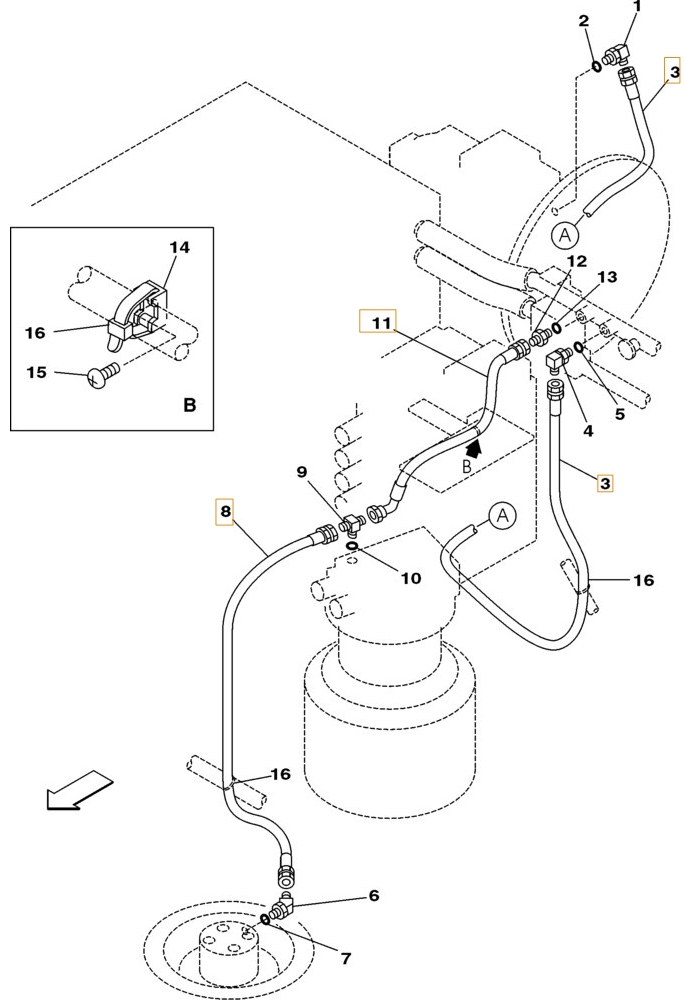

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 159074A1 before removing the hose.

Part number: 159074A1
Diagram pipe number: 3
Installation route: 液压泵~液压油箱
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,850 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 68

Installation route: 液压泵左~分配阀前

Length: 2,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 6

Installation route: 先导泵~吸油铁管

Length: 550 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 英制外螺纹平面密封
