Individual hose record

KNJ3006 Hose Repair Specifications

Excavator · Case · CX180 · Hydraulic Pump

Finished length550 mm

Locate this hose

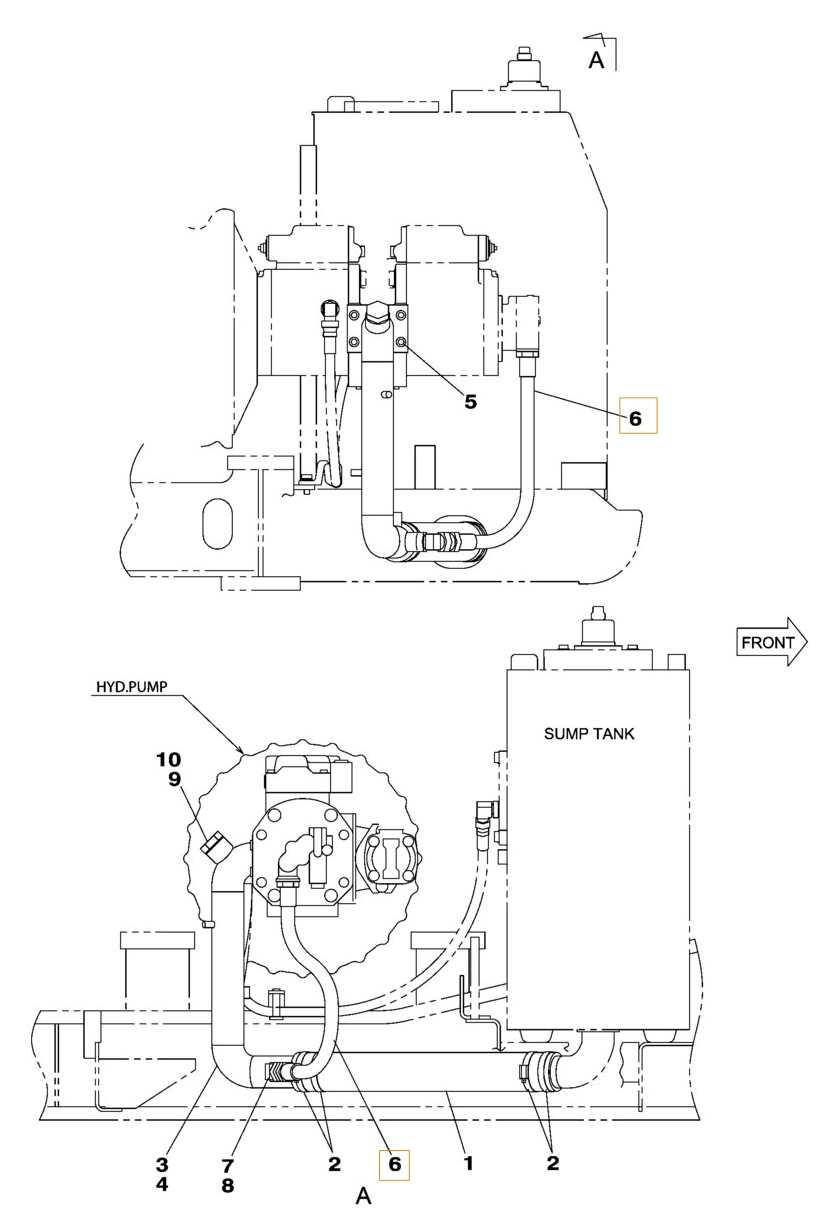

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number KNJ3006 before removing the hose.

Part number: KNJ3006
Diagram pipe number: 6
Installation route: 先导泵~吸油铁管
Hose specification: DN19;1SN-12;10.5MPa
Finished length: 550 mm
Working pressure: 10.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 英制外螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 68

Installation route: 液压泵左~分配阀前

Length: 2,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 3

Installation route: 液压泵~液压油箱

Length: 1,850 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
