Individual hose record

730501006991 Hose Repair Specifications

Excavator · Sunward · SWE210 · Boom Assembly

Finished length840 mm

Locate this hose

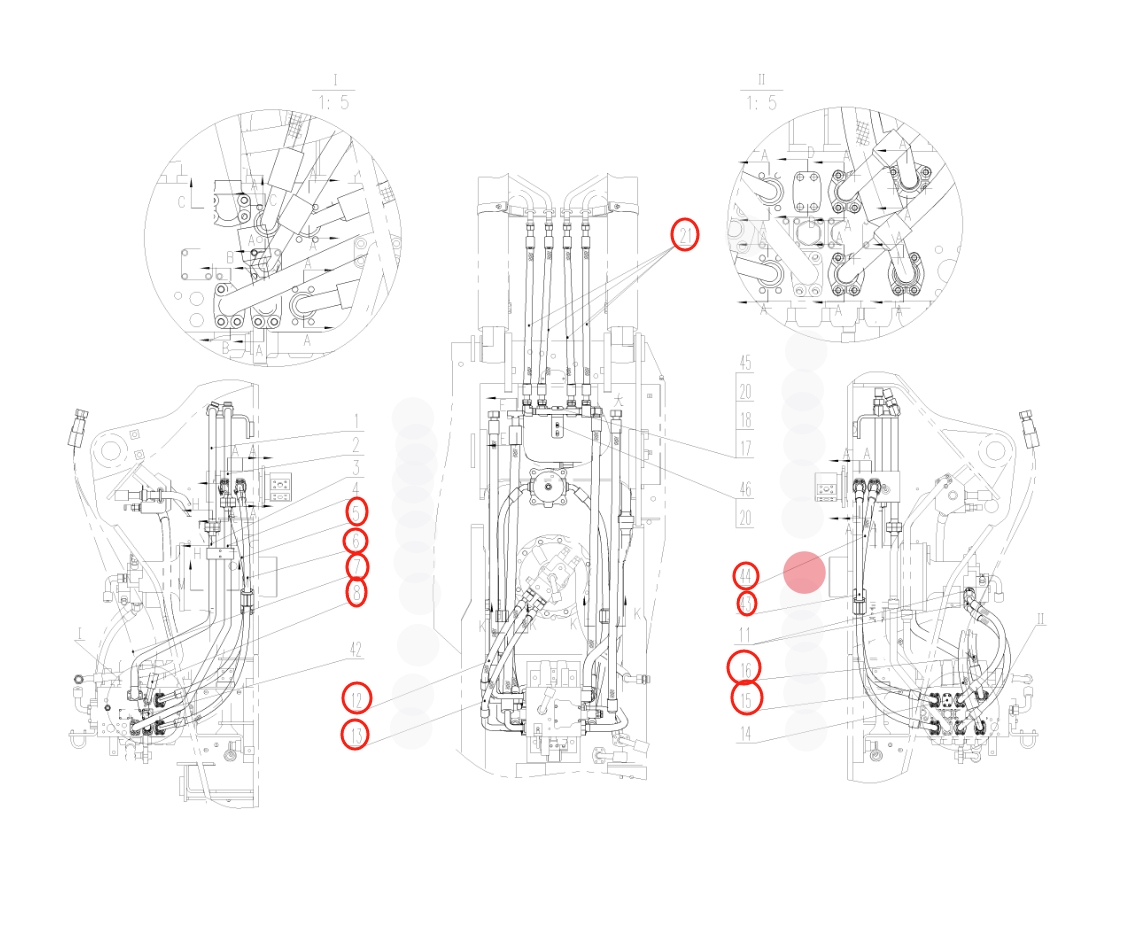

Installation diagram — Pipe No. 21

Locate Pipe No. 21 in the diagram, then confirm part number 730501006991 before removing the hose.

Sunward SWE210 installation diagram showing hydraulic hose 730501006991 at Pipe No. 21 — Sunward SWE210Part 730501006991 · Pipe No. 21Open full-size diagram

Repair specifications

Part number: 730501006991
Diagram pipe number: 21
Installation route: 大臂油缸
Hose specification: DN20;6SH-12;35MPa
Finished length: 840 mm
Working pressure: 35 MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型
Quantity: 4
