Individual hose record

730501003078 Hose Repair Specifications

Excavator · Sunward · SWE210 · Boom Assembly

Finished length1,275 mm

Locate this hose

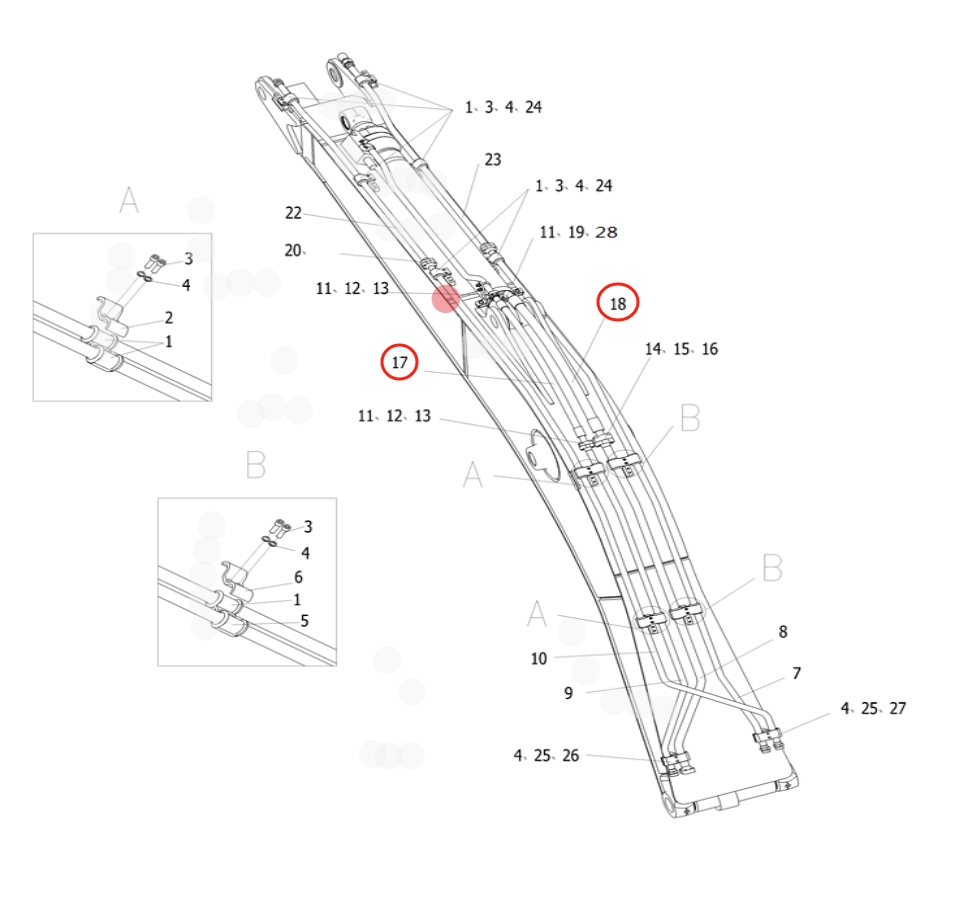

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 730501003078 before removing the hose.

Sunward SWE210 installation diagram showing hydraulic hose 730501003078 at Pipe No. 18 — Sunward SWE210Part 730501003078 · Pipe No. 18Open full-size diagram

Repair specifications

Part number: 730501003078
Diagram pipe number: 18
Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右
Hose specification: DN32;6SH-20;35MPa
Finished length: 1,275 mm
Working pressure: 35 MPa
Left fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 17

730501002121

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 1,250 mm
Specification: DN25;6SH-16;35MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型

View full repair specifications

Diagram Pipe No. 21

730501006991

Installation route: 大臂油缸

Length: 840 mm
Specification: DN20;6SH-12;35MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications
