Individual hose record
4690874 Hose Repair Specifications
Excavator · Hitachi · ZX85USB-3 · Attachments – Breaker
Finished length840 mm
Locate this hose

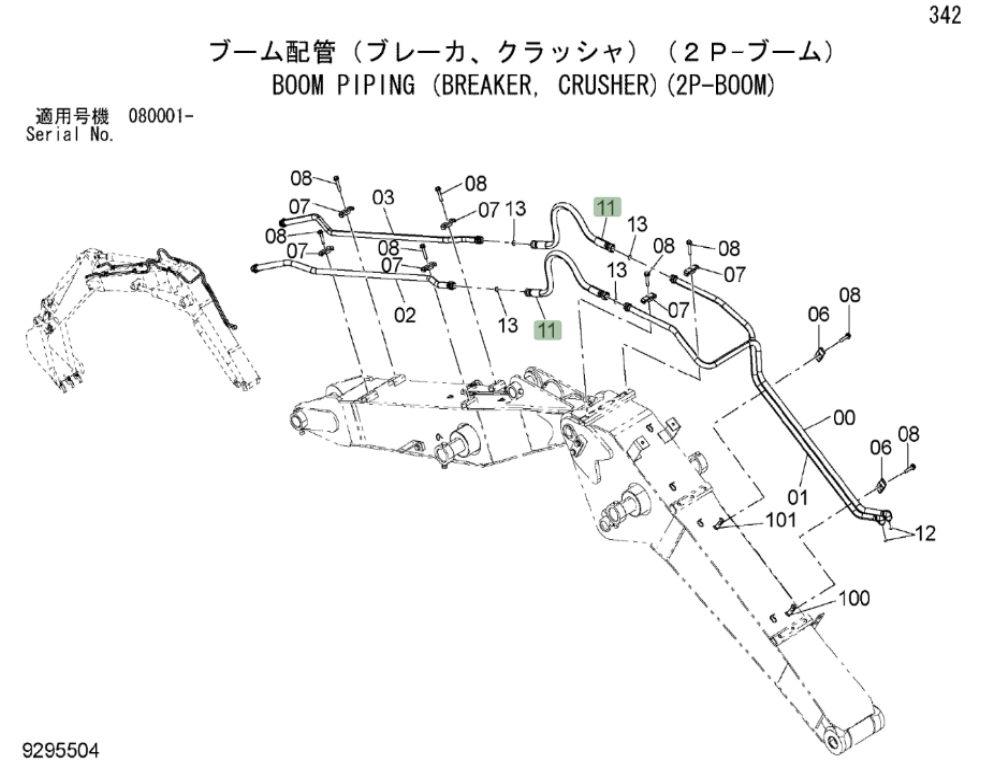

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4690874 before removing the hose.
Repair specifications
- Part number
- 4690874
- Diagram pipe number
- 11
- Installation route
- 大臂(前段)~大臂(后段)
- Hose specification
- DN19;4SP-12;28Mpa
- Finished length
- 840 mm
- Working pressure
- 28 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
