Individual hose record
4649710 Hose Repair Specifications
Excavator · Hitachi · ZX85USB-3 · Attachments – Breaker
Finished length380 mm
Locate this hose

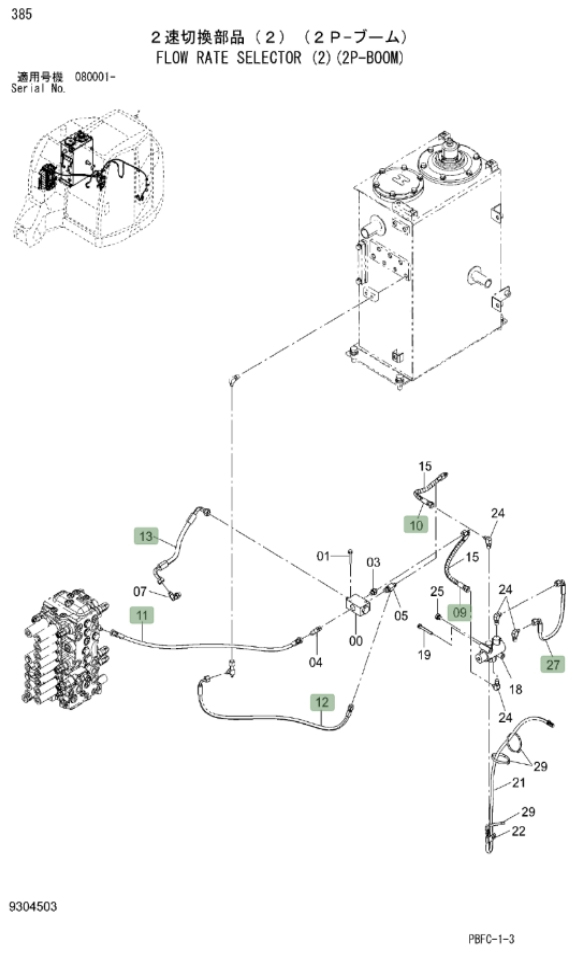

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 4649710 before removing the hose.
Repair specifications
- Part number
- 4649710
- Diagram pipe number
- 9
- Installation route
- 流速切换阀~过渡阀块(流速切换)
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 380 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
