4618606 Hose Repair Specifications

Excavator · Hitachi · ZX85USB-3 · Attachments – Breaker

Finished length520 mm

Locate this hose

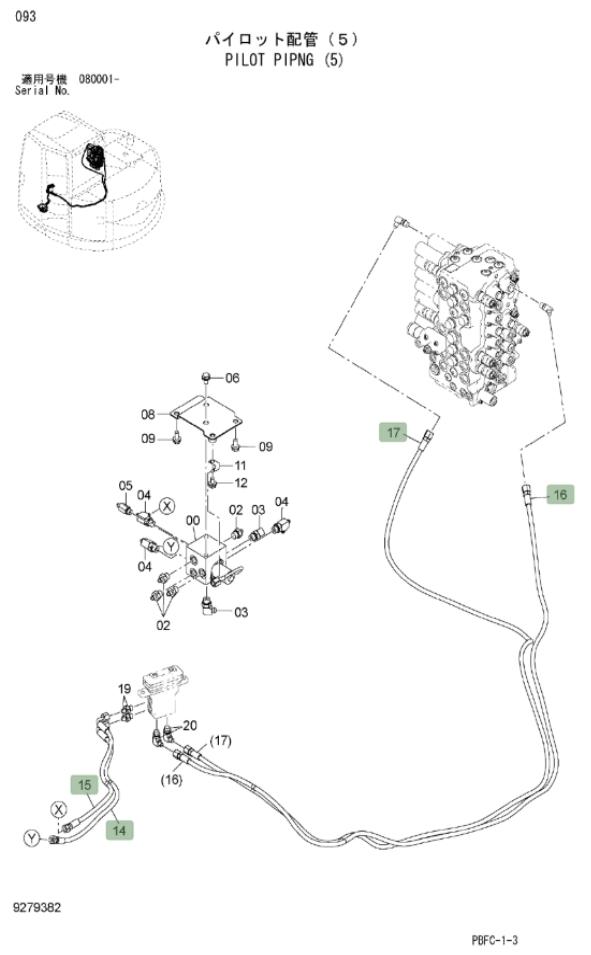

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 4618606 before removing the hose.

Hitachi ZX85USB-3 installation diagram showing hydraulic hose 4618606 at Pipe No. 15 — **Hitachi ZX85USB-3**Part 4618606 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: 4618606
Diagram pipe number: 15
Installation route: 破碎器踏板~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 520 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 35

4673427

Installation route: 分配阀右~铁管(破碎器)

Length: 800 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 57

4451995

Installation route: 控制阀(破碎器)~过渡阀块(破碎器踏板)

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 11

4664651

Installation route: 分配阀后~过渡阀块(流速切换)

Length: 900 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 32

4442331

Installation route: 过渡阀块(破碎器踏板)~过渡阀块(电磁阀(破碎器))

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 2

4466630

Installation route: 大臂(破碎器)~小臂(破碎器)

Length: 1,100 mm
Specification: DN10;2SN-6;28Mpa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制内螺纹30°外锥

View full repair specifications

Diagram Pipe No. 61

4470392

Installation route: 分配阀后~液压油箱

Length: 550 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 11

4690874

Installation route: 大臂(前段)~大臂(后段)

Length: 840 mm
Specification: DN19;4SP-12;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 9

4649710

Installation route: 流速切换阀~过渡阀块(流速切换)

Length: 380 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
