Individual hose record
4401378 Hose Repair Specifications
Excavator · Hitachi · ZX180W · Solenoid Valve
Finished length1,230 mm
Locate this hose

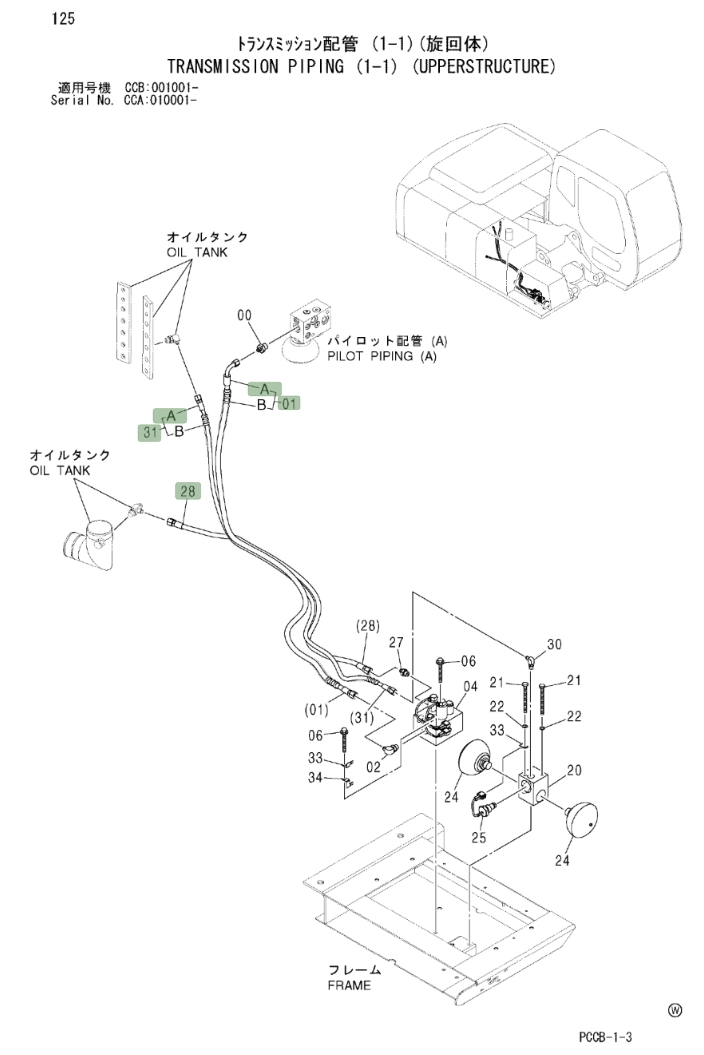

Installation diagram — Pipe No. 28
Locate Pipe No. 28 in the diagram, then confirm part number 4401378 before removing the hose.
Repair specifications
- Part number
- 4401378
- Diagram pipe number
- 28
- Installation route
- 电磁阀(变速器)~吸油铁管
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,230 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
