Individual hose record
4615475 Hose Repair Specifications
Excavator · Hitachi · ZX180W · Solenoid Valve
Finished length770 mm
Locate this hose

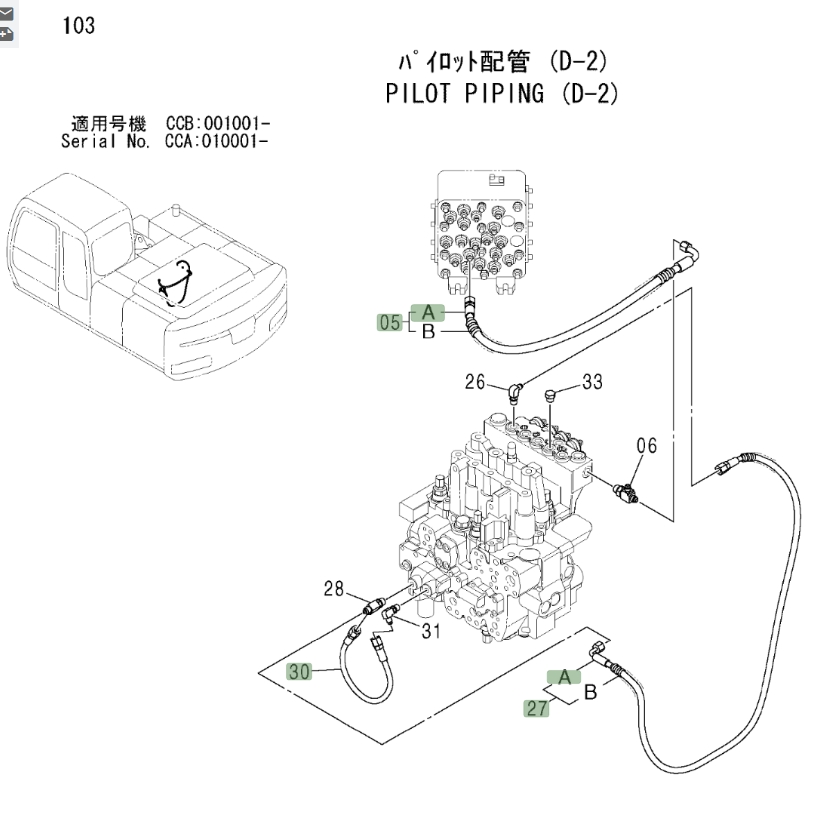

Installation diagram — Pipe No. 5A
Locate Pipe No. 5A in the diagram, then confirm part number 4615475 before removing the hose.
Repair specifications
- Part number
- 4615475
- Diagram pipe number
- 5A
- Installation route
- 电磁阀~中转接头
- Hose specification
- DN10;1SN-6;18MPa
- Finished length
- 770 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥双六角
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
