Individual hose record
4488333 Hose Repair Specifications
Excavator · Hitachi · ZX180W · Solenoid Valve
Finished length3,500 mm
Locate this hose

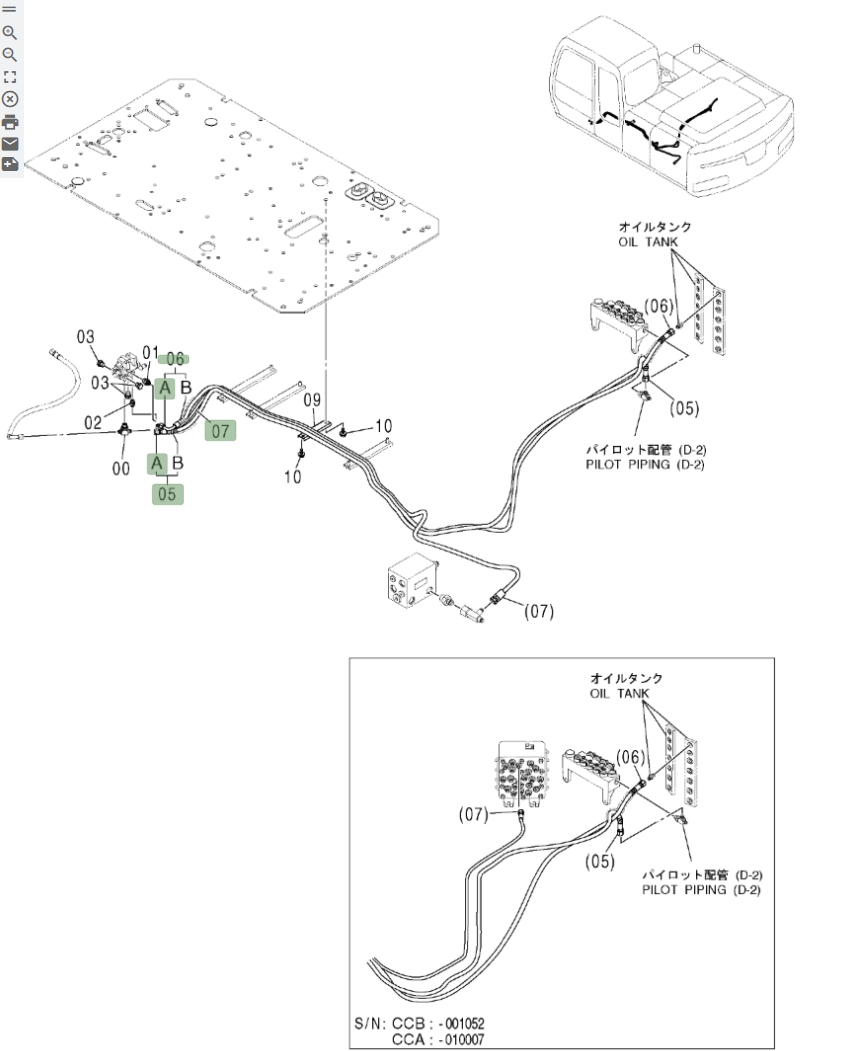

Installation diagram — Pipe No. 5A
Locate Pipe No. 5A in the diagram, then confirm part number 4488333 before removing the hose.
Repair specifications
- Part number
- 4488333
- Diagram pipe number
- 5A
- Installation route
- 电磁阀~进回油阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 3,500 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
