Individual hose record
4369871 Hose Repair Specifications
Excavator · Hitachi · EX450LC-5 · Control Valve
Finished length1,450 mm
Locate this hose

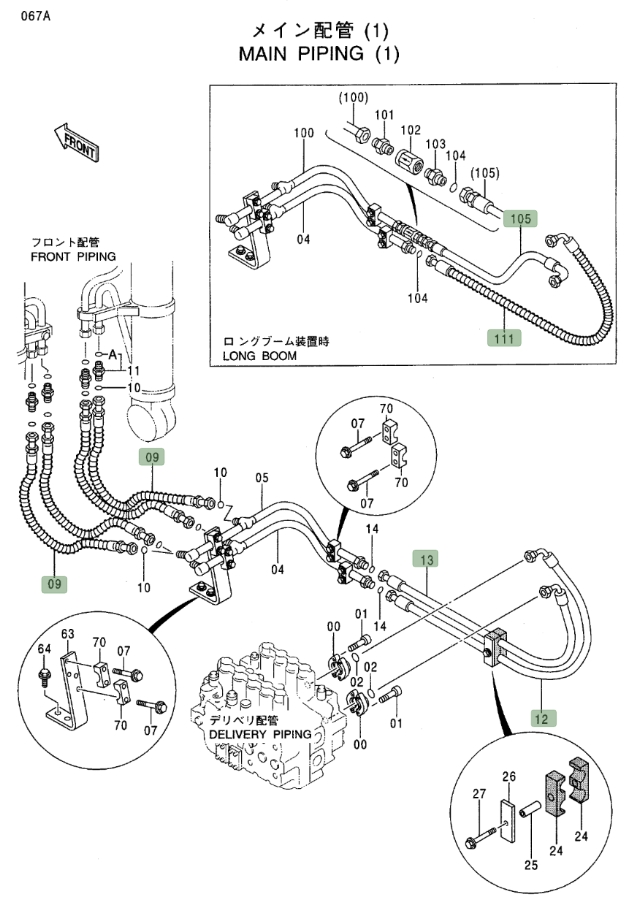

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number 4369871 before removing the hose.
Repair specifications
- Part number
- 4369871
- Diagram pipe number
- 13
- Installation route
- 分配阀右~铁管(大臂油缸)
- Hose specification
- DN32;6SH-20;42MPa
- Finished length
- 1,450 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 75°法兰-重型
- Quantity
- 1
