Individual hose record
730504004318 Hose Repair Specifications
Excavator · Sunward · SWE155E · Swivel Joint
Finished length1,100 mm
Locate this hose

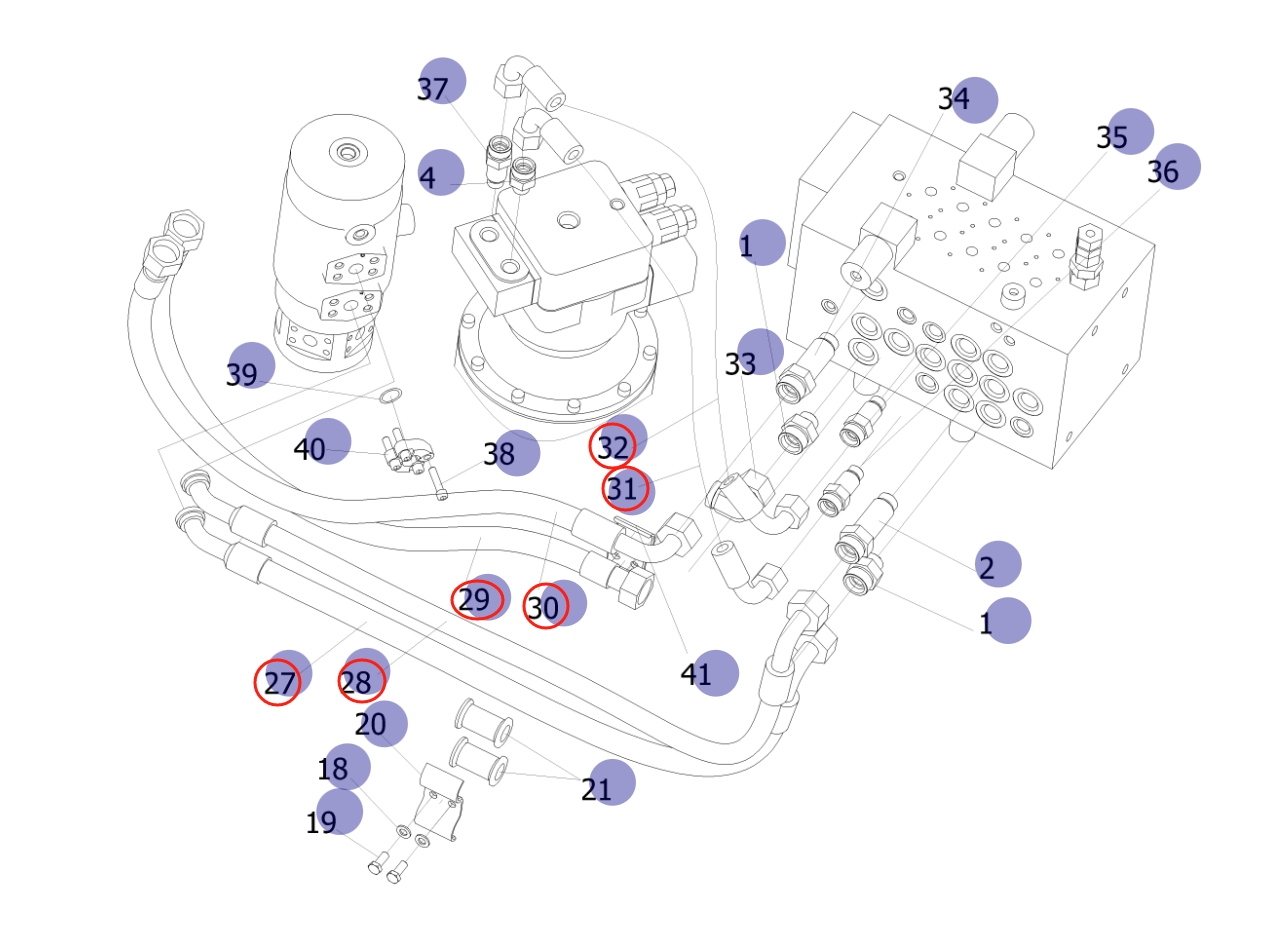

Installation diagram — Pipe No. 27
Locate Pipe No. 27 in the diagram, then confirm part number 730504004318 before removing the hose.
Repair specifications
- Part number
- 730504004318
- Diagram pipe number
- 27
- Installation route
- 回转接头~分配阀
- Hose specification
- DN20;6SH-12;35MPa
- Finished length
- 1,100 mm
- Working pressure
- 35 MPa
- Left fitting
- 90°公制内螺纹24°锥带O形圈-重型
- Right fitting
- 45°法兰-轻型
- Quantity
- 1
