Individual hose record
73050200A679 Hose Repair Specifications
Excavator · Sunward · SWE155E · Swivel Joint
Finished length725 mm
Locate this hose

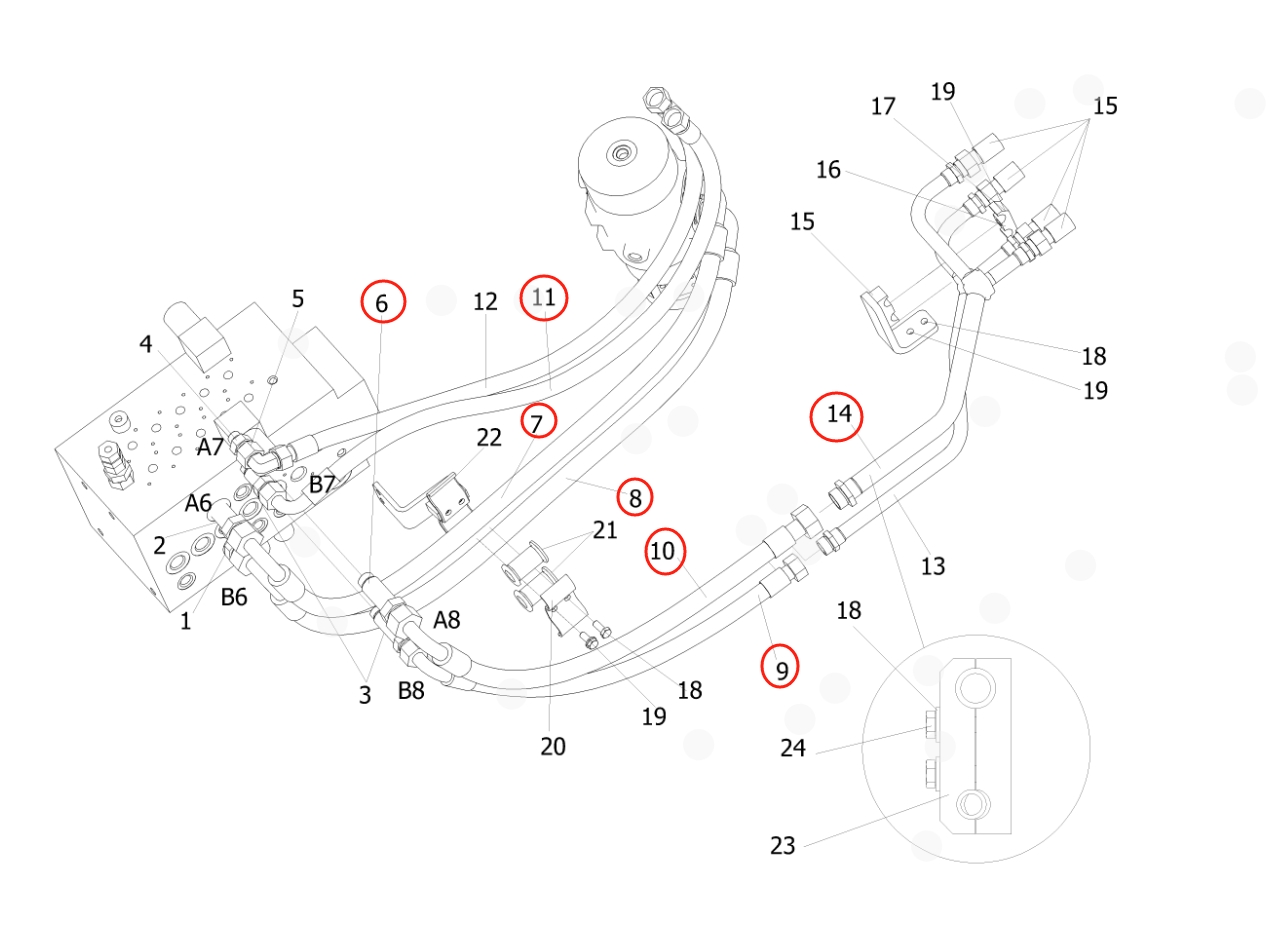

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 73050200A679 before removing the hose.
Repair specifications
- Part number
- 73050200A679
- Diagram pipe number
- 8
- Installation route
- 回转接头~分配阀右B6
- Hose specification
- DN16;6SH-10;42MPa
- Finished length
- 725 mm
- Working pressure
- 42 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-重型
- Quantity
- 1
