Individual hose record
4158042 Hose Repair Specifications
Excavator · Hitachi · EX700 · Grease Lines
Finished length650 mm
Locate this hose

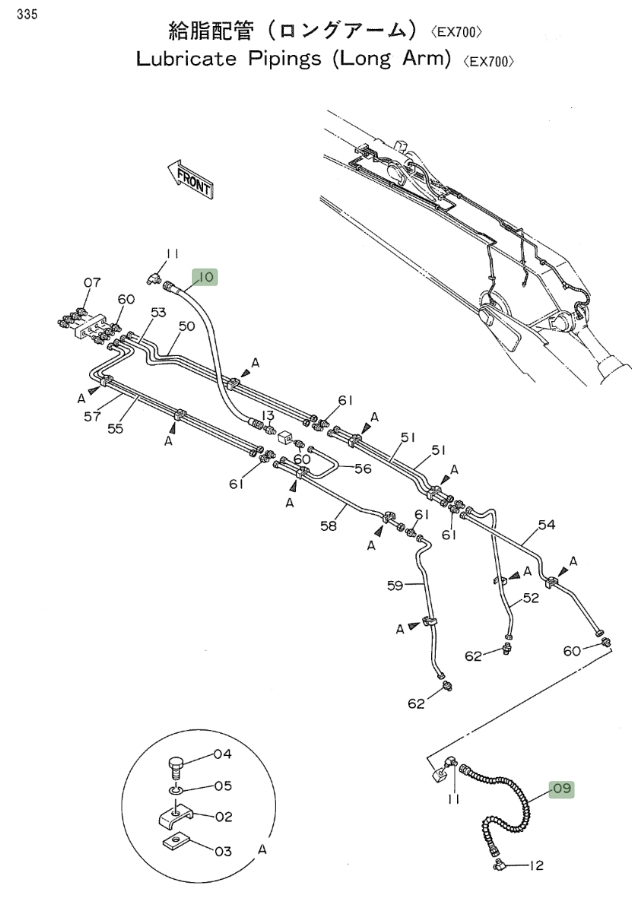

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 4158042 before removing the hose.
Repair specifications
- Part number
- 4158042
- Diagram pipe number
- 10
- Installation route
- 铲斗油缸黄油管
- Hose specification
- DN6;1SN-4;7MPa
- Finished length
- 650 mm
- Working pressure
- 7 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 750 mm
- Specification
- DN6;1SN-4;7MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制锥形外螺纹30°内锥
- Length
- 700 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Length
- 1,350 mm
- Specification
- DN10;2SN-06;21Mpa
- Left fitting
- 英制锥形外螺纹
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Length
- 600 mm
- Specification
- DN6;1SN-04;7MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Length
- 450 mm
- Specification
- DN6;1SN-4;7MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Length
- 700 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Length
- 600 mm
- Specification
- DN10;2SN-6;20.5MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
