Individual hose record
4158117 Hose Repair Specifications
Excavator · Hitachi · EX700 · Grease Lines
Finished length1,450 mm
Locate this hose

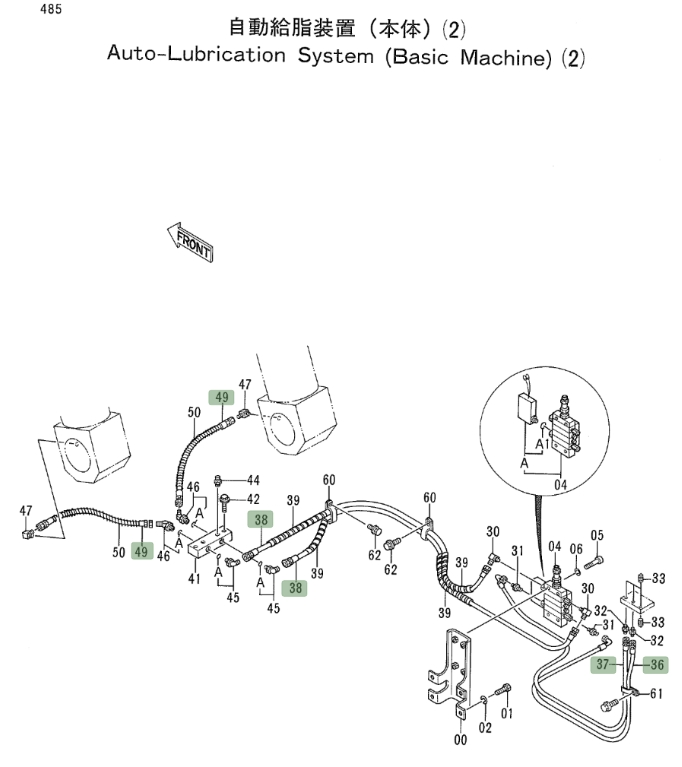

Installation diagram — Pipe No. 38
Locate Pipe No. 38 in the diagram, then confirm part number 4158117 before removing the hose.
Repair specifications
- Part number
- 4158117
- Diagram pipe number
- 38
- Installation route
- 分流阀(黄油)~过渡阀块(大臂下)
- Hose specification
- DN6;1SN-4;17MPa
- Finished length
- 1,450 mm
- Working pressure
- 17 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 2
