Individual hose record
4367714 Hose Repair Specifications
Excavator · Hitachi · EX700 · Grease Lines
Finished length700 mm
Locate this hose

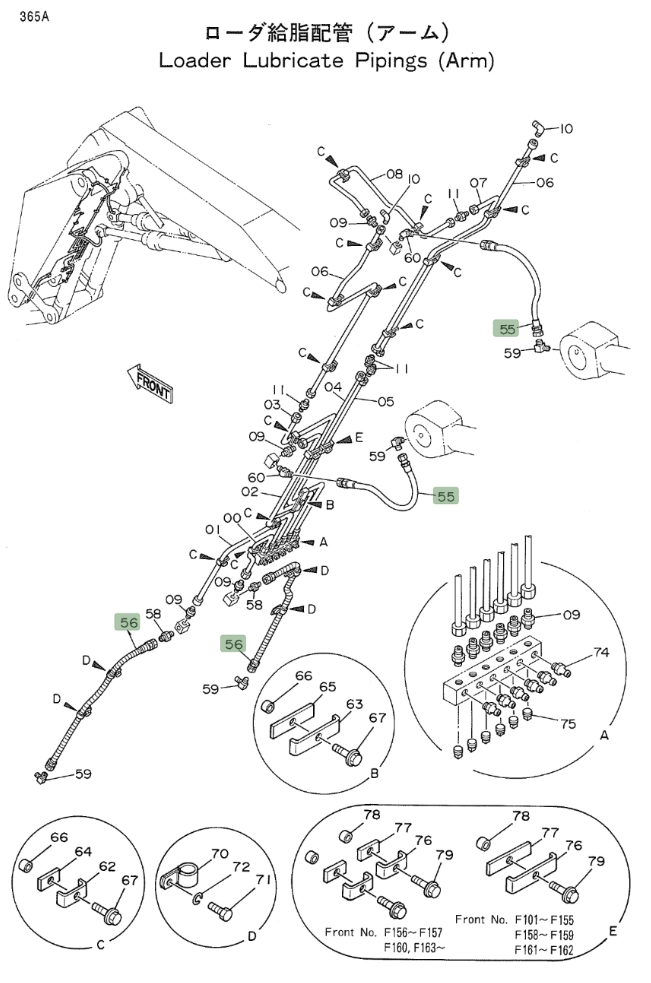

Installation diagram — Pipe No. 55
Locate Pipe No. 55 in the diagram, then confirm part number 4367714 before removing the hose.
Repair specifications
- Part number
- 4367714
- Diagram pipe number
- 55
- Installation route
- Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 700 mm
- Working pressure
- 7 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 2
