Individual hose record
4466630 Hose Repair Specifications
Excavator · Hitachi · ZX75US · Attachments – Breaker
Finished length1,100 mm
Locate this hose

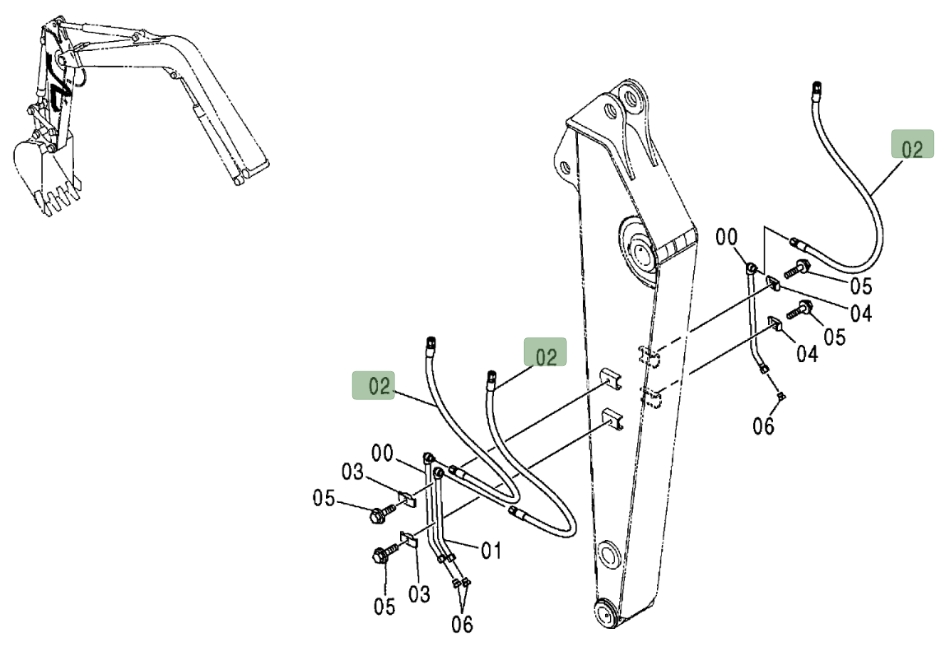

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4466630 before removing the hose.
Repair specifications
- Part number
- 4466630
- Diagram pipe number
- 2
- Installation route
- 大臂(破碎器)~小臂(破碎器)
- Hose specification
- DN10;2SN-6;28Mpa
- Finished length
- 1,100 mm
- Working pressure
- 28 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 3
