Individual hose record
4452734 Hose Repair Specifications
Excavator · Hitachi · ZX75US · Attachments – Breaker
Finished length400 mm
Locate this hose

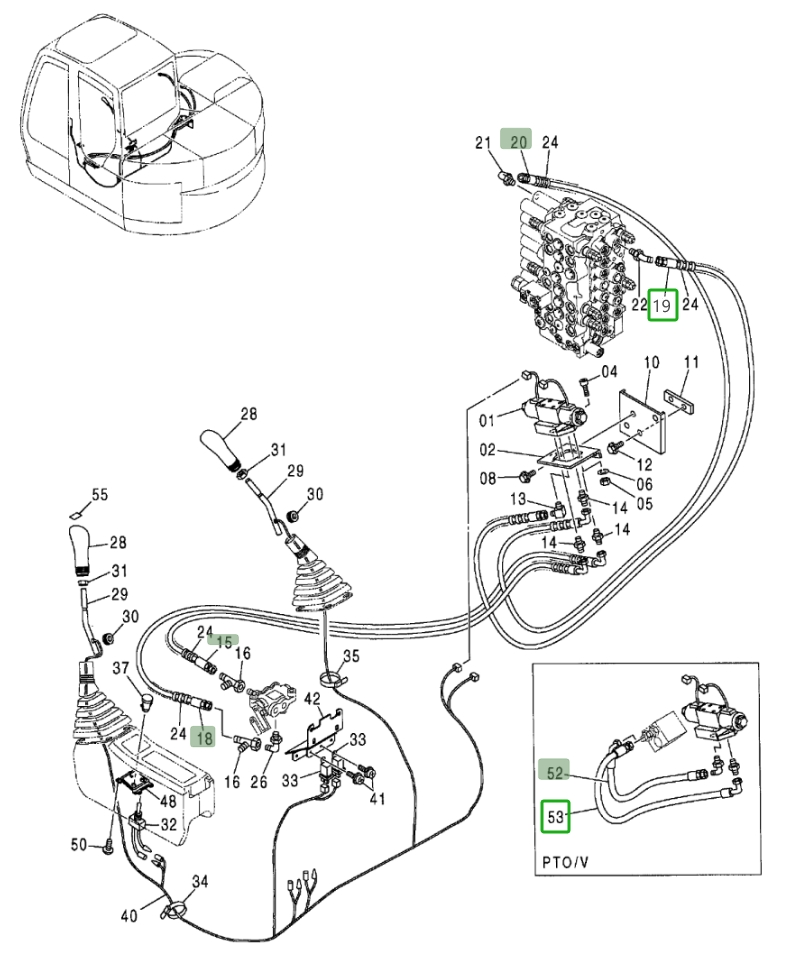

Installation diagram — Pipe No. 52
Locate Pipe No. 52 in the diagram, then confirm part number 4452734 before removing the hose.
Repair specifications
- Part number
- 4452734
- Diagram pipe number
- 52
- Installation route
- 电磁阀(破碎器)~过渡阀块(破碎器)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 400 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
