Individual hose record
4601148 Hose Repair Specifications
Excavator · Hitachi · ZX75US · Attachments – Breaker
Finished length2,150 mm
Locate this hose

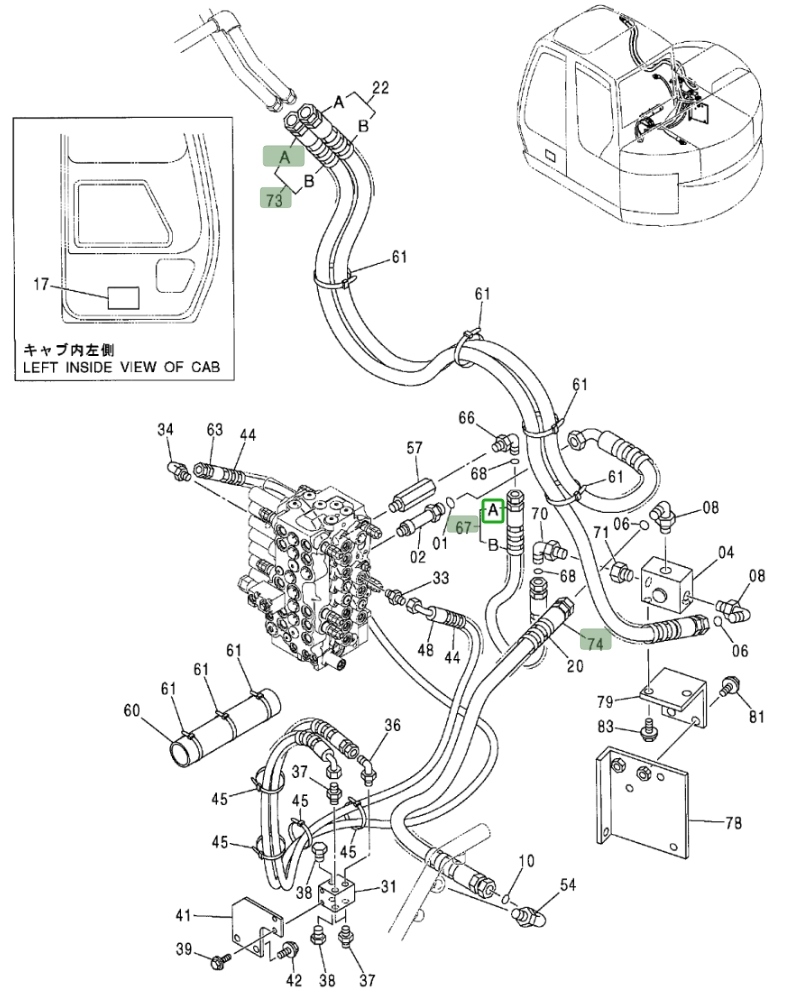

Installation diagram — Pipe No. 73A
Locate Pipe No. 73A in the diagram, then confirm part number 4601148 before removing the hose.
Repair specifications
- Part number
- 4601148
- Diagram pipe number
- 73A
- Installation route
- 大臂(破碎器)~过渡阀块(破碎器)
- Hose specification
- DN19;4SP-12;38Mpa
- Finished length
- 2,150 mm
- Working pressure
- 38 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
