Individual hose record
4643029 Hose Repair Specifications
Excavator · Hitachi · ZX350LC-3 · Control Valve
Finished length550 mm
Locate this hose

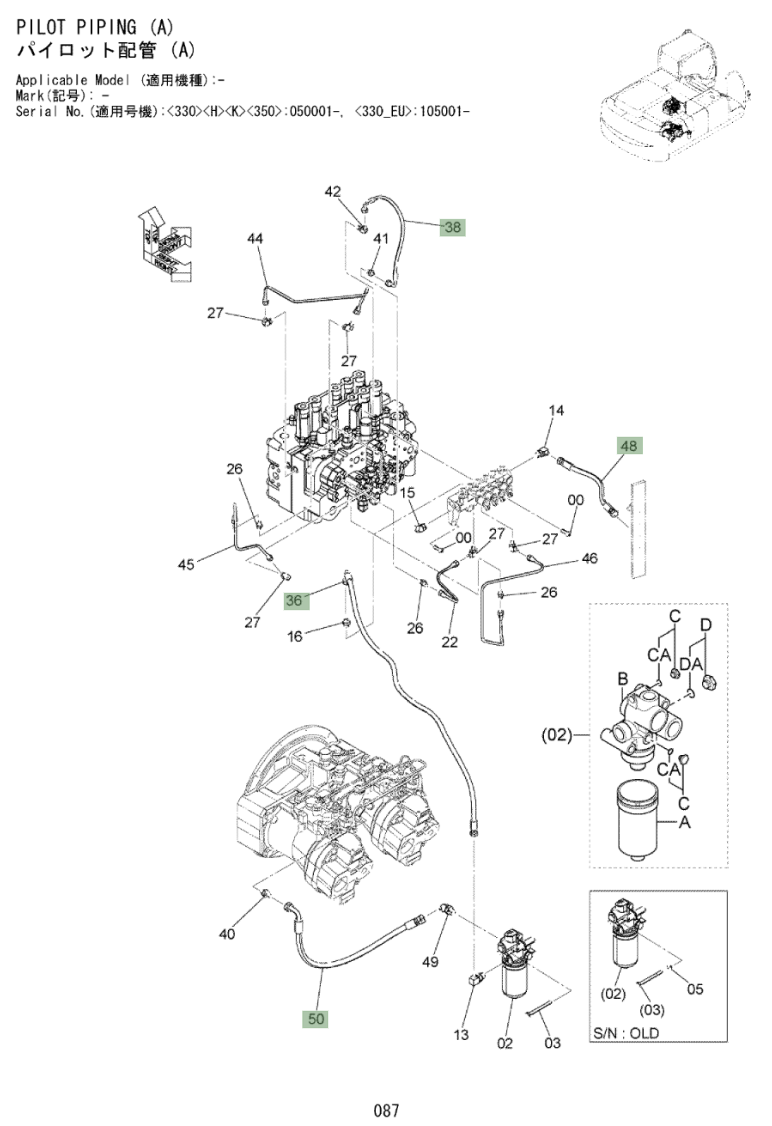

Installation diagram — Pipe No. 38
Locate Pipe No. 38 in the diagram, then confirm part number 4643029 before removing the hose.
Repair specifications
- Part number
- 4643029
- Diagram pipe number
- 38
- Installation route
- 分配阀上~分配阀右
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 550 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 45°美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 480 mm
- Specification
- DN25;1SN-16;8.8MPa
- Left fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 430 mm
- Specification
- DN25;1SN-16;8.8MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 850 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 410 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Length
- 250 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 45°美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
