Individual hose record
4269797 Hose Repair Specifications
Excavator · Hitachi · ZX450LC · Grease Lines
Finished length750 mm
Locate this hose

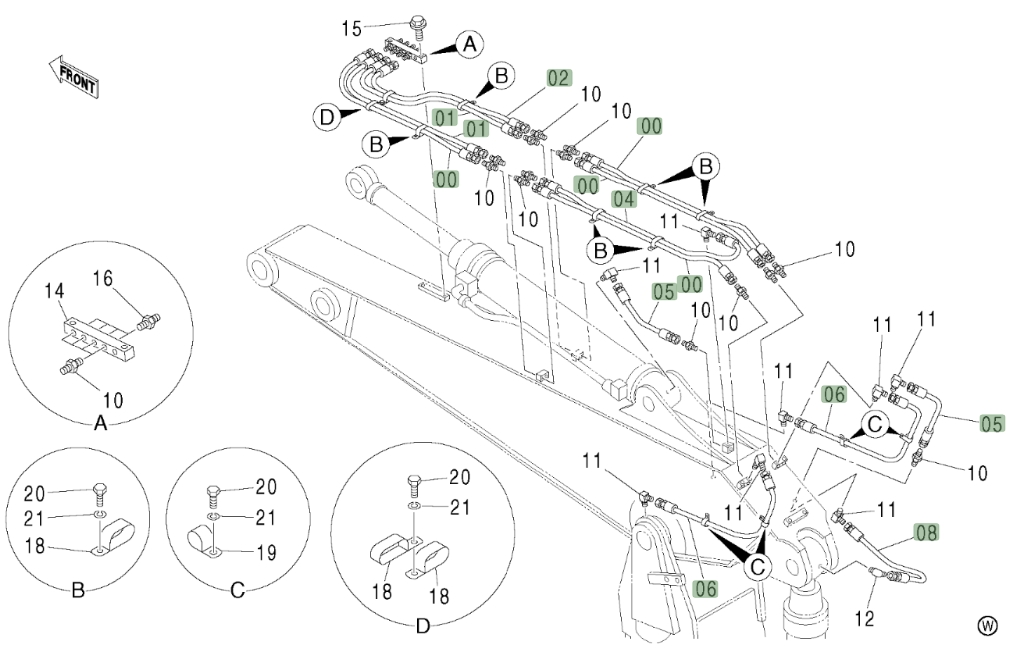

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 4269797 before removing the hose.
Repair specifications
- Part number
- 4269797
- Diagram pipe number
- 8
- Installation route
- Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 750 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
