Individual hose record

4368038 Hose Repair Specifications

Excavator · Hitachi · ZX75US · Attachments

Finished length1,350 mm

Locate this hose

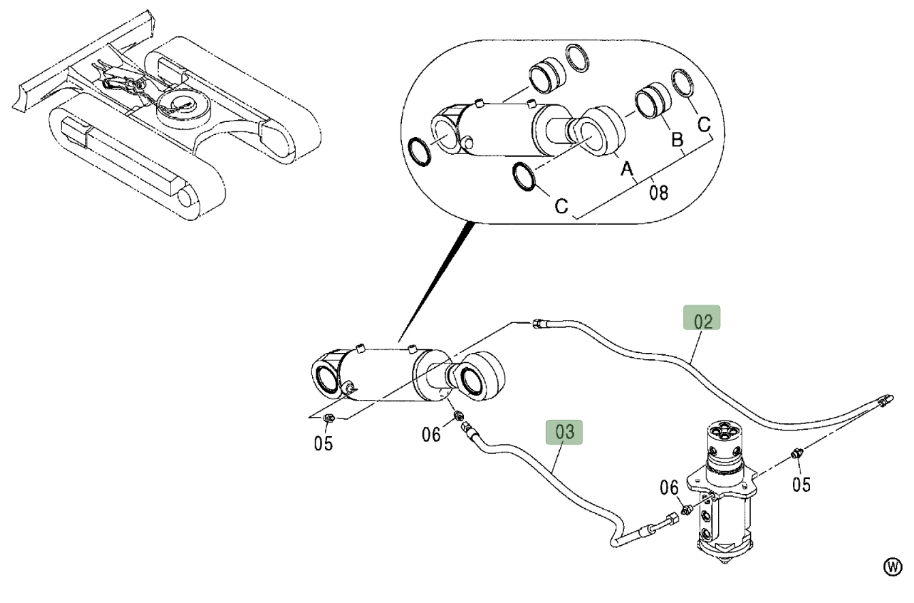

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 4368038 before removing the hose.

Hitachi ZX75US installation diagram showing hydraulic hose 4368038 at Pipe No. 2 — Hitachi ZX75USPart 4368038 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 4368038
Diagram pipe number: 2
Installation route: 回转接头~推土铲油缸
Hose specification: DN10;4SH-06;44.5MPa
Finished length: 1,350 mm
Working pressure: 44.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

4471897

Installation route: 推土铲手柄~分配阀前

Length: 2,000 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 3

4418939

Installation route: 回转接头~推土铲油缸

Length: 1,100 mm
Specification: DN12;2SN-8;25Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
