Individual hose record
4657309 Hose Repair Specifications
Excavator · Hitachi · ZX190W-5N · Swivel Joint
Finished length420 mm
Locate this hose

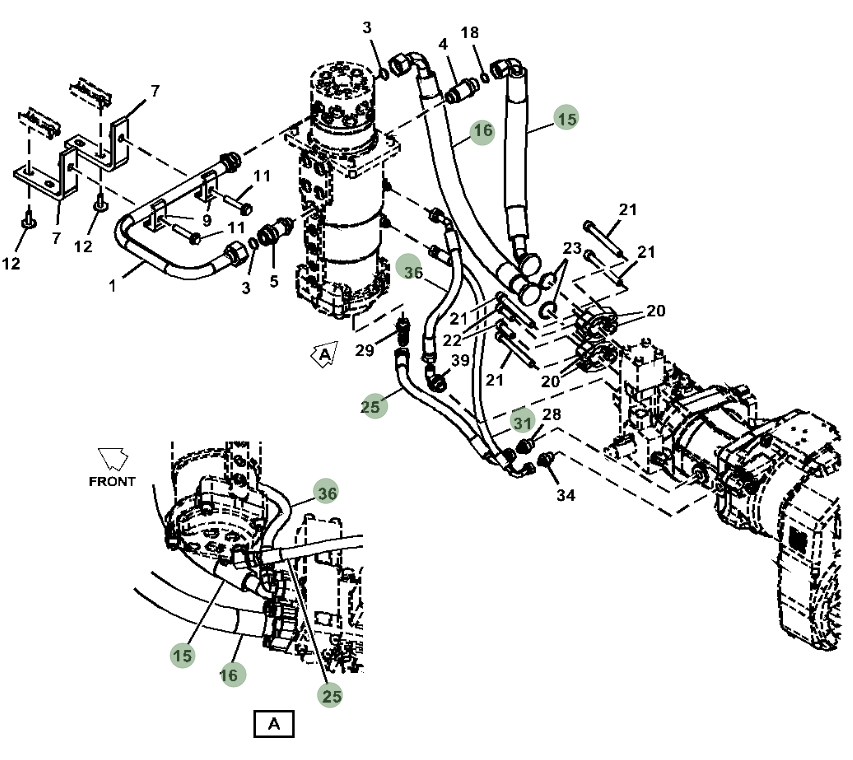

Installation diagram — Pipe No. 36
Locate Pipe No. 36 in the diagram, then confirm part number 4657309 before removing the hose.
Repair specifications
- Part number
- 4657309
- Diagram pipe number
- 36
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN12;1SN-8;7Mpa
- Finished length
- 420 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
