Individual hose record

DS2023318 Hose Repair Specifications

Excavator · Doosan · DX150LC · Hydraulic Pump

Finished length480 mm

Locate this hose

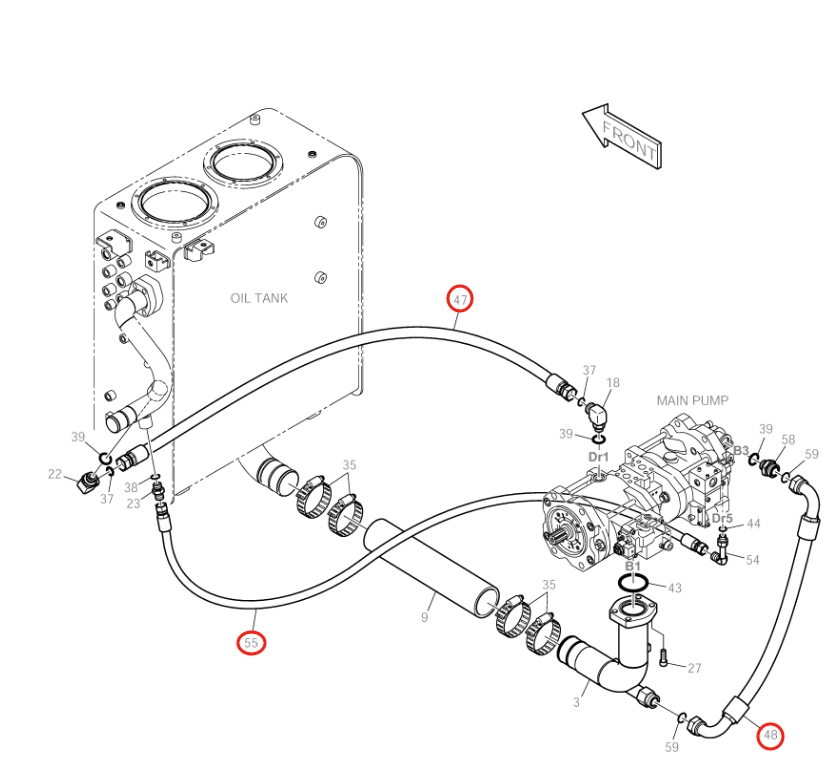

Installation diagram — Pipe No. 48

Locate Pipe No. 48 in the diagram, then confirm part number DS2023318 before removing the hose.

Doosan DX150LC installation diagram showing hydraulic hose DS2023318 at Pipe No. 48 — **Doosan DX150LC**Part DS2023318 · Pipe No. 48Open full-size diagram

Repair specifications

Part number: DS2023318
Diagram pipe number: 48
Installation route: 液压泵B3口~吸油铁管
Hose specification: DN25;1SN-16;8.8MPa
Finished length: 480 mm
Working pressure: 8.8 MPa
Left fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1
