Individual hose record

2184-1201D9 Hose Repair Specifications

Excavator · Doosan · DX150LC · Hydraulic Pump

Finished length1,200 mm

Locate this hose

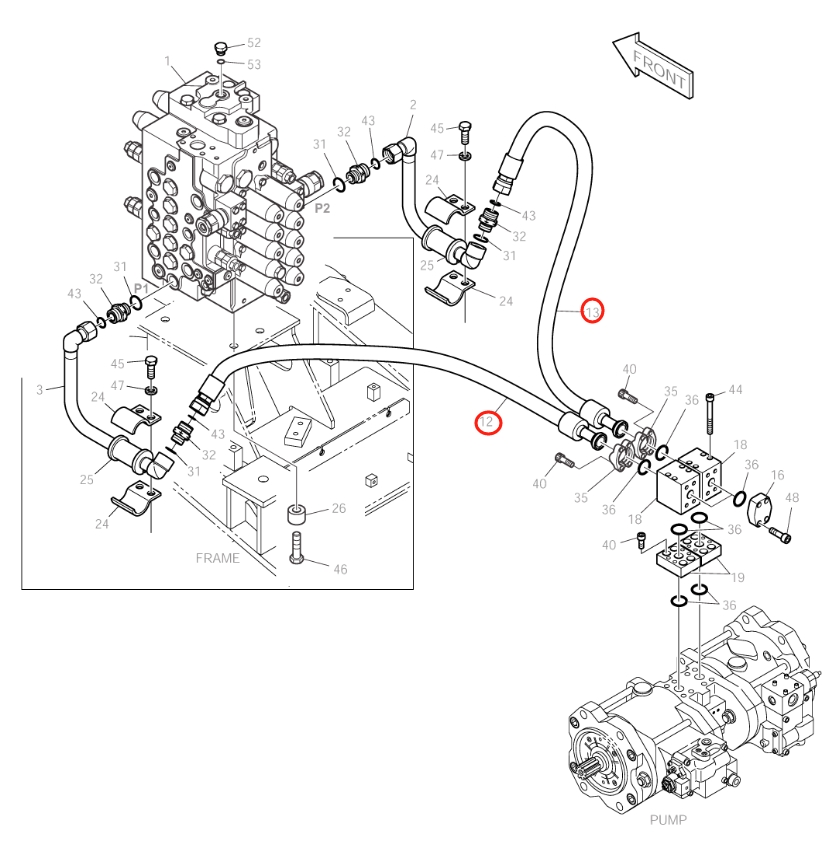

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 2184-1201D9 before removing the hose.

Doosan DX150LC installation diagram showing hydraulic hose 2184-1201D9 at Pipe No. 12 — **Doosan DX150LC**Part 2184-1201D9 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 2184-1201D9
Diagram pipe number: 12
Installation route: 液压泵~分配阀P1口
Hose specification: DN19;4SH-12;42MPa
Finished length: 1,200 mm
Working pressure: 42 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 47

DS2011112

Installation route: 液压泵DR1口~回油铁管(液压油箱)

Length: 950 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Hose record

DS2119107

Installation route: 液压泵~液压泵

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Hose record

DS2011688

Installation route: 液压泵~液压油箱

Length: 1,270 mm
Specification: DN13;1SN-08;16MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Hose record

DS20131737

Installation route: 液压泵~分配阀右

Length: 2,440 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Hose record

DS2121367

Installation route: 液压泵~分配阀右

Length: 1,870 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 48

DS2023318

Installation route: 液压泵B3口~吸油铁管

Length: 480 mm
Specification: DN25;1SN-16;8.8MPa
Left fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 47

DS20131380

Installation route: 液压泵DR1口~回油铁管(液压油箱)

Length: 1,070 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Hose record

DS2016265

Installation route: 液压泵~堵头(减震管)

Length: 310 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
