Individual hose record
DS20551101 Hose Repair Specifications
Excavator · Doosan · DX80R · Attachments – Quick Coupler
Finished length930 mm
Locate this hose

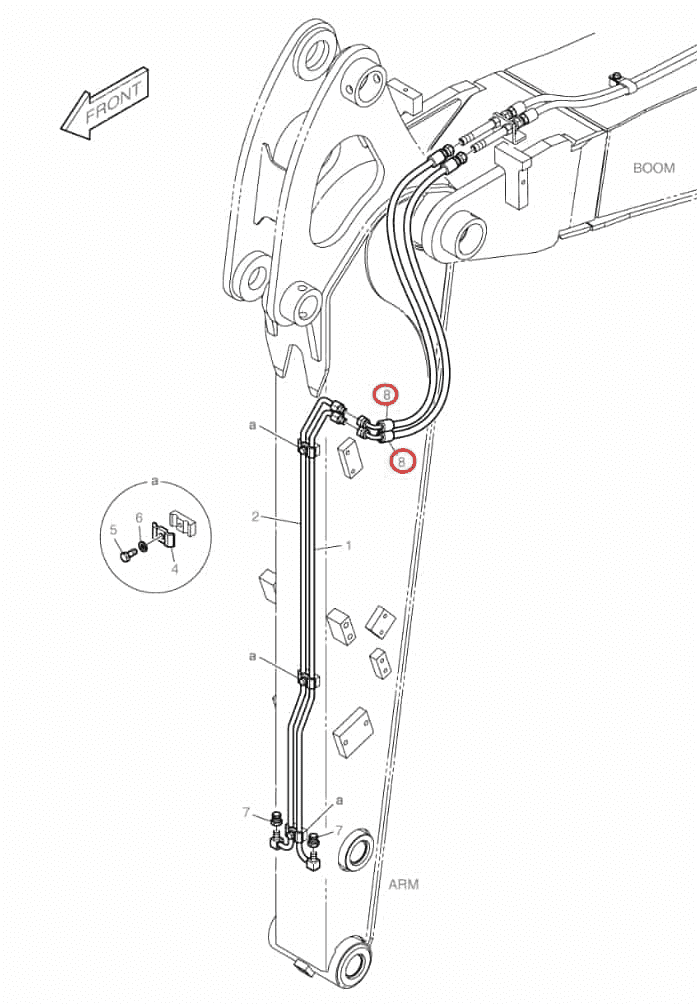

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number DS20551101 before removing the hose.
Repair specifications
- Part number
- DS20551101
- Diagram pipe number
- 8
- Installation route
- 大臂(快换)~小臂(快换)
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 930 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Quantity
- 2
