Individual hose record
4673427 Hose Repair Specifications
Excavator · Hitachi · ZX870LC-6 · Attachments
Finished length800 mm
Locate this hose

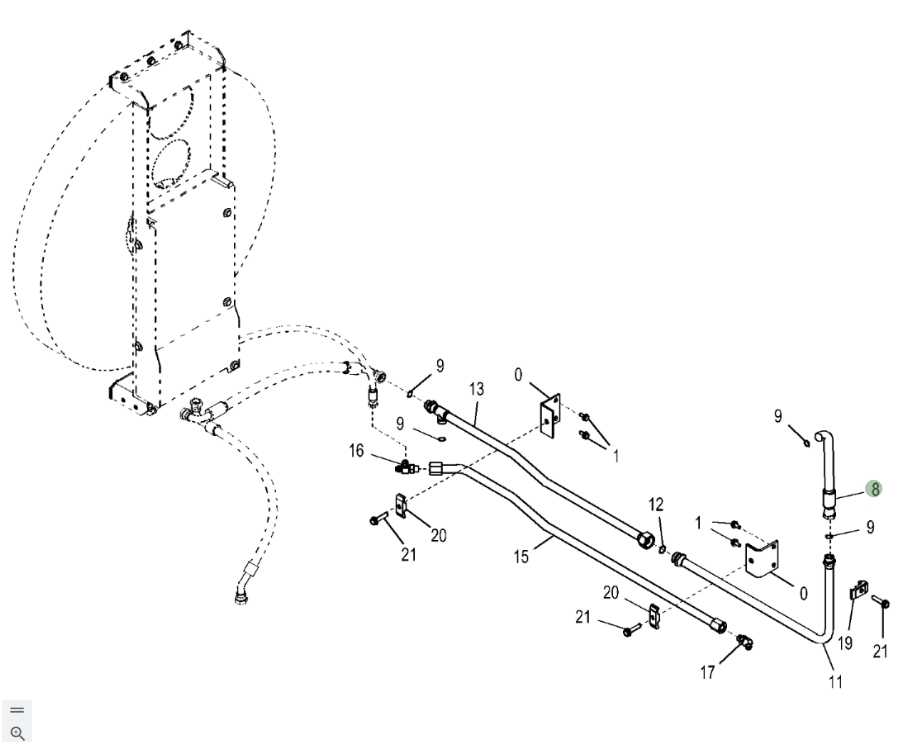

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 4673427 before removing the hose.
Repair specifications
- Part number
- 4673427
- Diagram pipe number
- 8
- Installation route
- 散热器~铁管(散热器)
- Hose specification
- DN19;4SP-12;35Mpa
- Finished length
- 800 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Quantity
- 1
