Individual hose record

DS20401214 Hose Repair Specifications

Excavator · Doosan · DX150LC · Boom Assembly

Finished length835 mm

Locate this hose

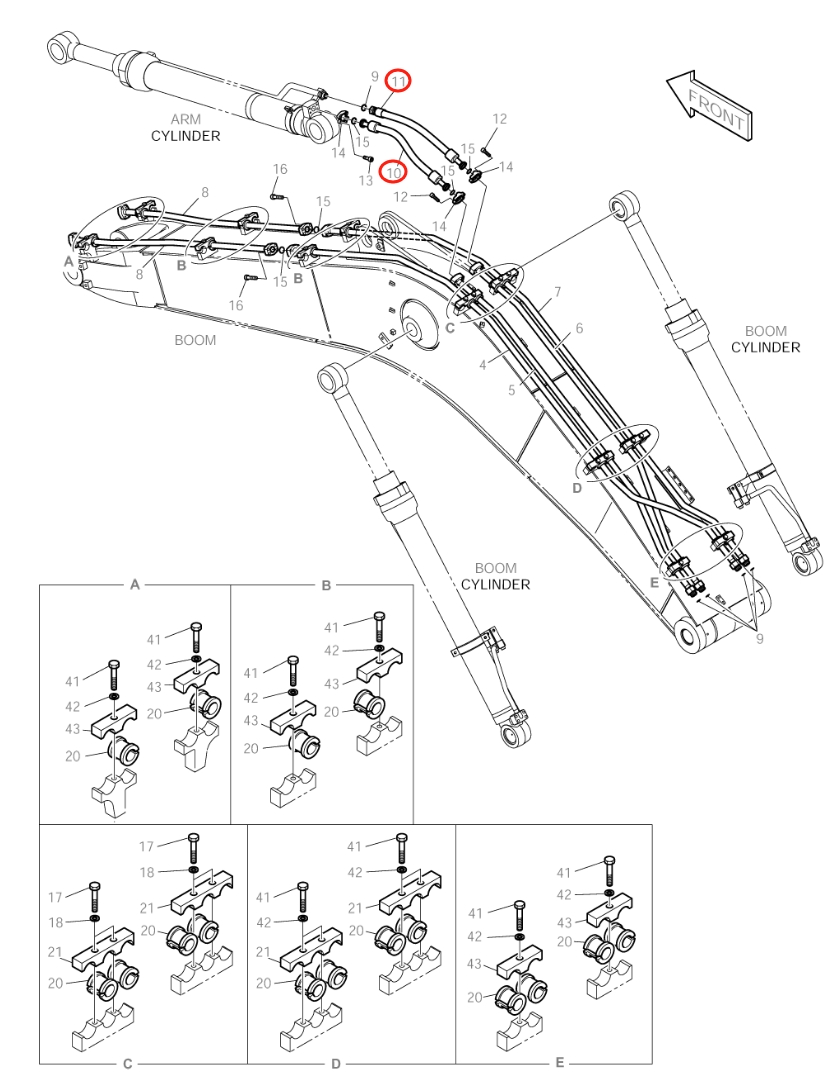

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number DS20401214 before removing the hose.

Doosan DX150LC installation diagram showing hydraulic hose DS20401214 at Pipe No. 10 — **Doosan DX150LC**Part DS20401214 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: DS20401214
Diagram pipe number: 10
Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification: DN19;4SH-12;42MPa
Finished length: 835 mm
Working pressure: 42 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型
Quantity: 1
