Individual hose record
4375516 Hose Repair Specifications
Excavator · Hitachi · EX200LC-5 · Attachments – Breaker
Finished length1,700 mm
Locate this hose

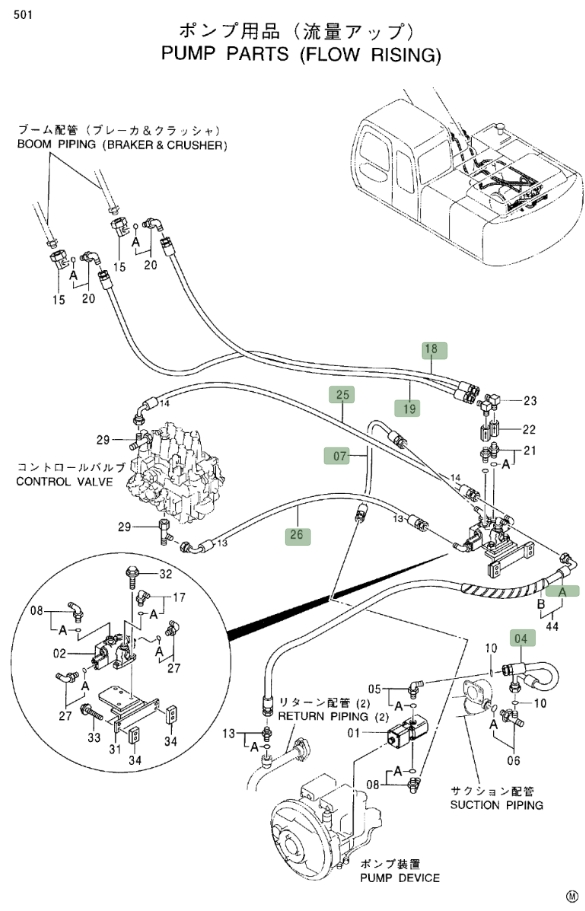

Installation diagram — Pipe No. 26
Locate Pipe No. 26 in the diagram, then confirm part number 4375516 before removing the hose.
Repair specifications
- Part number
- 4375516
- Diagram pipe number
- 26
- Installation route
- 分配阀下~控制阀(破碎器)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,700 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
