Individual hose record

4659943 Hose Repair Specifications

Excavator · Hitachi · ZX220W-3 · Attachments

Finished length760 mm

Locate this hose

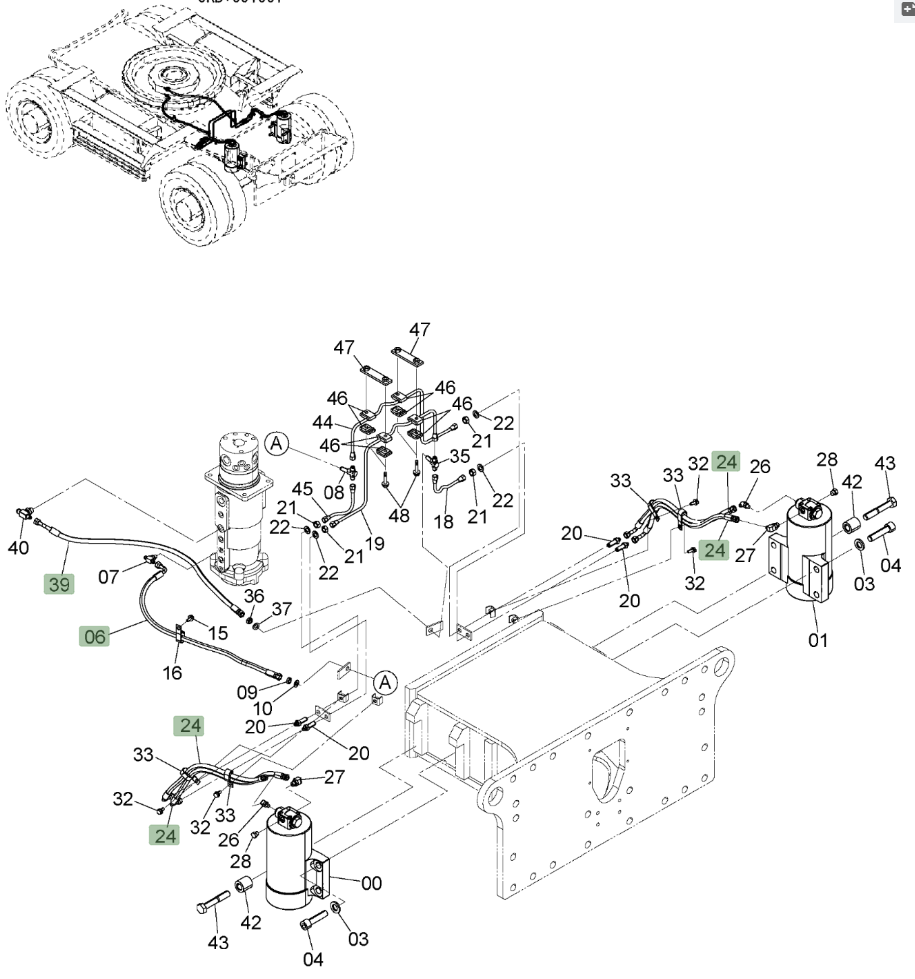

Installation diagram — Pipe No. 24

Locate Pipe No. 24 in the diagram, then confirm part number 4659943 before removing the hose.

Hitachi ZX220W-3 installation diagram showing hydraulic hose 4659943 at Pipe No. 24 — Hitachi ZX220W-3Part 4659943 · Pipe No. 24Open full-size diagram

Repair specifications

Part number: 4659943
Diagram pipe number: 24
Installation route: 轮上作动筒~铁管(轮上作动筒)
Hose specification: DN10;1SN-6;7Mpa
Finished length: 760 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 4

Same system

Related Hoses

Diagram Pipe No. 5

4452733

Installation route: 电磁阀~接头(支架)

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 27

9265954

Installation route: 回转接头~电磁阀(推土铲)

Length: 750 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 20

4453063

Installation route: 控制阀(辅助)~电磁阀(隔板)

Length: 630 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 28A

4664475

Installation route: 大臂(辅助)~控制阀(辅助)

Length: 3,250 mm
Specification: DN10;2SN-6;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 14

4618606

Installation route: 分配阀左~电磁阀

Length: 520 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 27A

4448946

Installation route: 回转接头~电磁阀(推土铲)

Length: 750 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 36A

4663313

Installation route: 电磁阀(推土铲)~铁管(推土铲)

Length: 2,150 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 68A

4436269

Installation route: 电磁阀(支腿架)~铁管(支腿架)

Length: 350 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 90°美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications
