Individual hose record
4660684 Hose Repair Specifications
Excavator · Hitachi · ZX210LC-5G · Control Valve
Finished length300 mm
Locate this hose

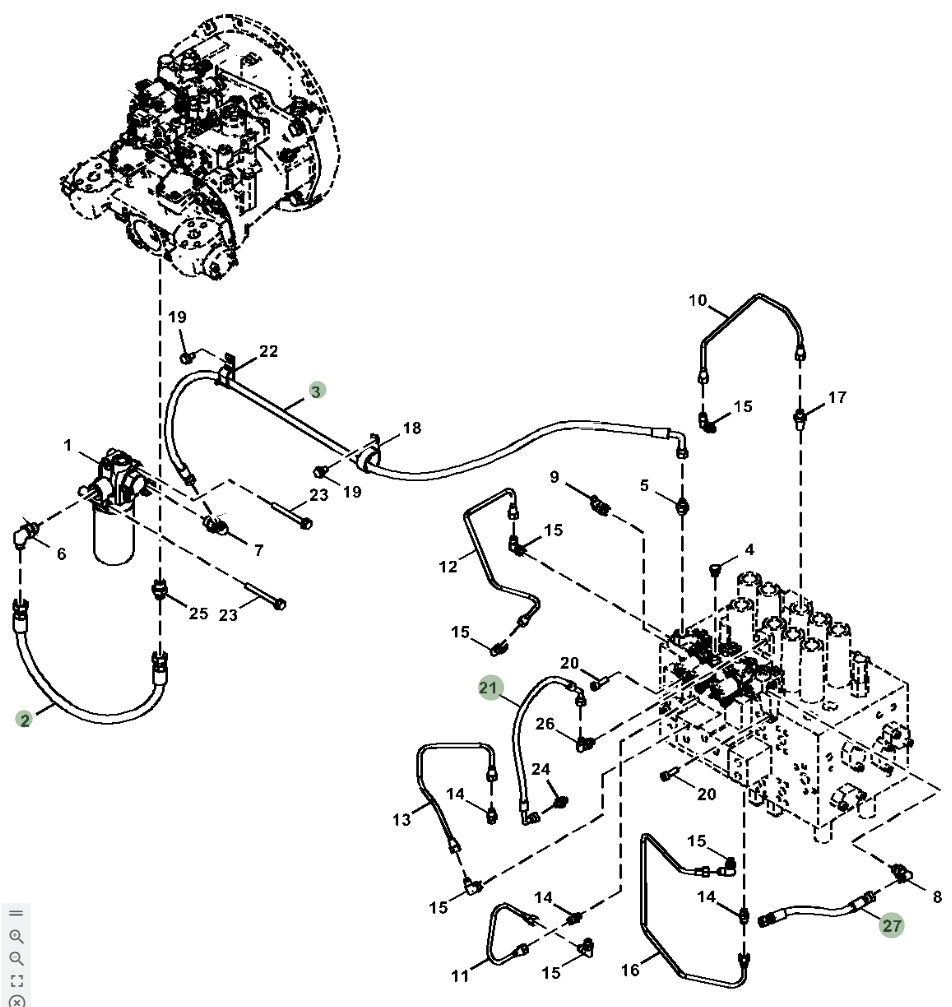

Installation diagram — Pipe No. 27
Locate Pipe No. 27 in the diagram, then confirm part number 4660684 before removing the hose.
Repair specifications
- Part number
- 4660684
- Diagram pipe number
- 27
- Installation route
- 分配阀前~分配阀左
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 300 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
