Individual hose record
4274569 Hose Repair Specifications
Excavator · Hitachi · ZX220W-3 · Attachments – Breaker
Finished length600 mm
Locate this hose

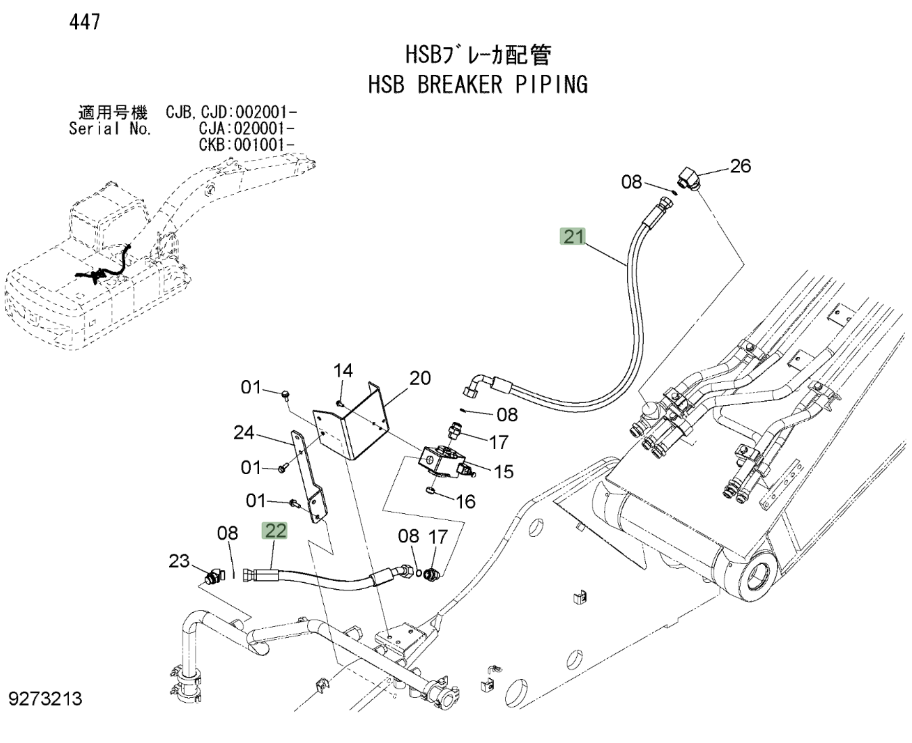

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number 4274569 before removing the hose.
Repair specifications
- Part number
- 4274569
- Diagram pipe number
- 22
- Installation route
- 过渡阀块(破碎器)~回油铁管(液压油箱)
- Hose specification
- DN19;1SN-12;7Mpa
- Finished length
- 600 mm
- Working pressure
- 7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Quantity
- 1
