Individual hose record

4308972 Hose Repair Specifications

Excavator · Hitachi · ZX200LC · Attachments – Breaker

Finished length1,000 mm

Locate this hose

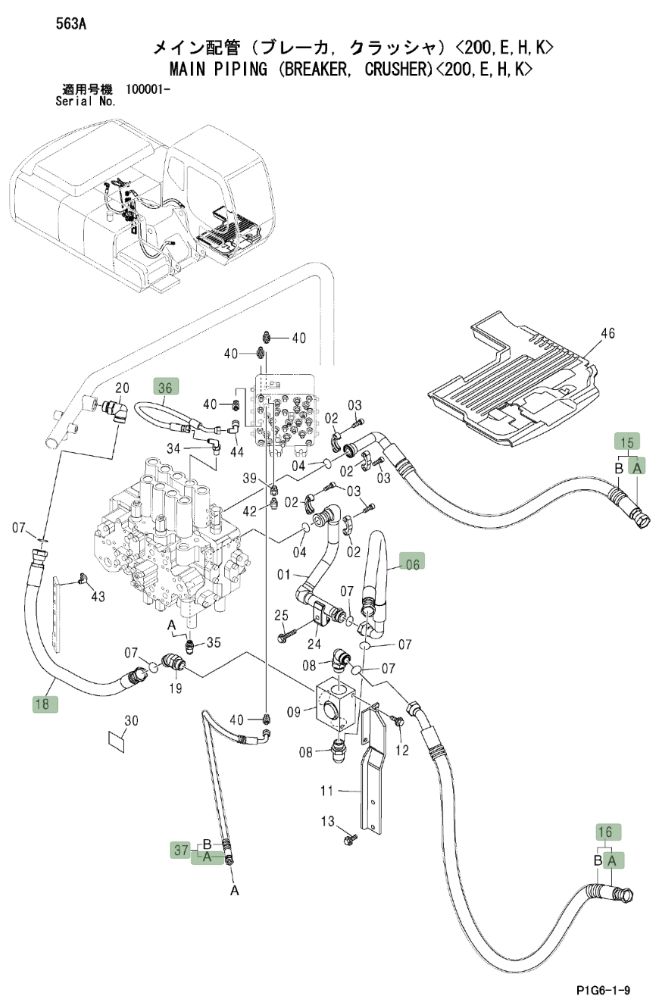

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 4308972 before removing the hose.

Hitachi ZX200LC installation diagram showing hydraulic hose 4308972 at Pipe No. 6 — **Hitachi ZX200LC**Part 4308972 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 4308972
Diagram pipe number: 6
Installation route: 过渡阀块(破碎器)~分配阀左
Hose specification: DN25;4SP-16;34.5MPa
Finished length: 1,000 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 3

4357695

Installation route: 大臂(前段)~大臂(后段)

Length: 1,480 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 22A

4376778

Installation route: 大臂(破碎器)~控制阀(破碎器)

Length: 2,050 mm
Specification: DN10;2SN-6;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 12A

4285801

Installation route: 控制阀(破碎器)~过渡阀块(破碎器)

Length: 850 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 2

4452035

Installation route: 过渡阀块(流速切换)~过渡阀块(隔板)

Length: 400 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 11

4188920

Installation route: 大臂(后段)~卸压安全阀(破碎器)

Length: 800 mm
Specification: DN19;4SP-12;38Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

4437282

Installation route: 流速切换阀~过渡阀块(隔板)

Length: 550 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 12

9183926

Installation route: 控制阀(破碎器)~过渡阀块(破碎器)

Length: 850 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 23A

4409092

Installation route: 大臂(破碎器)~控制阀(破碎器)

Length: 1,820 mm
Specification: DN10;2SN-6;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications
