Individual hose record
4445714 Hose Repair Specifications
Excavator · Hitachi · ZX120-3 · Solenoid Valve
Finished length370 mm
Locate this hose

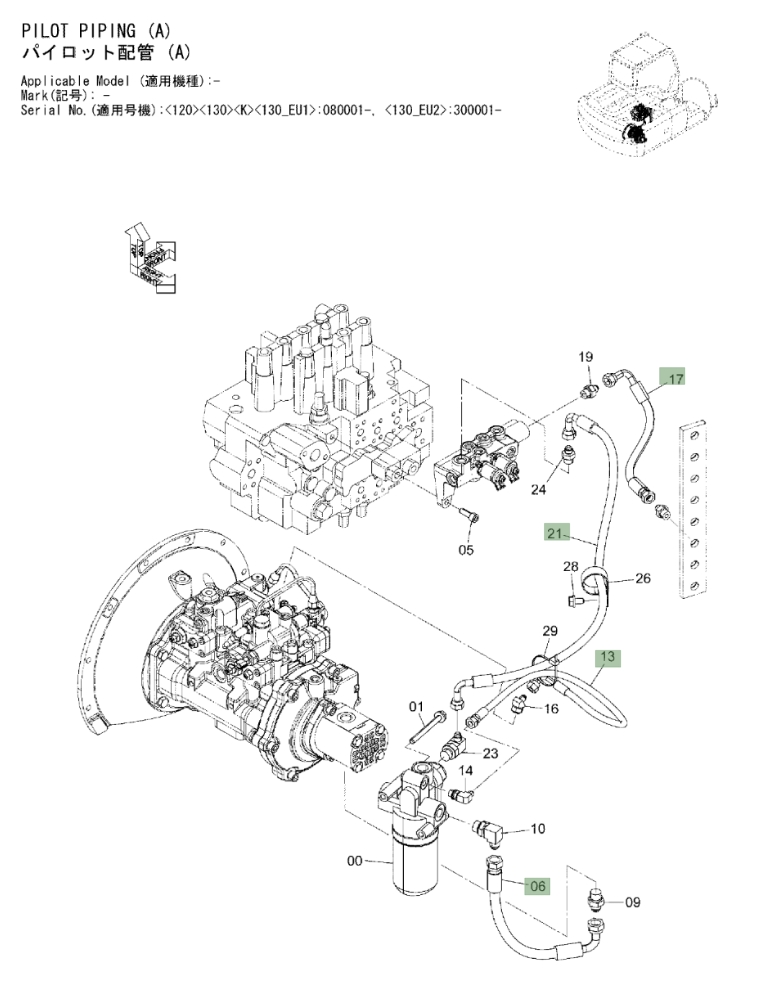

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number 4445714 before removing the hose.
Repair specifications
- Part number
- 4445714
- Diagram pipe number
- 17
- Installation route
- 电磁阀~液压油箱
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 370 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
