Individual hose record
4666881 Hose Repair Specifications
Excavator · Hitachi · ZX120-3 · Solenoid Valve
Finished length500 mm
Locate this hose

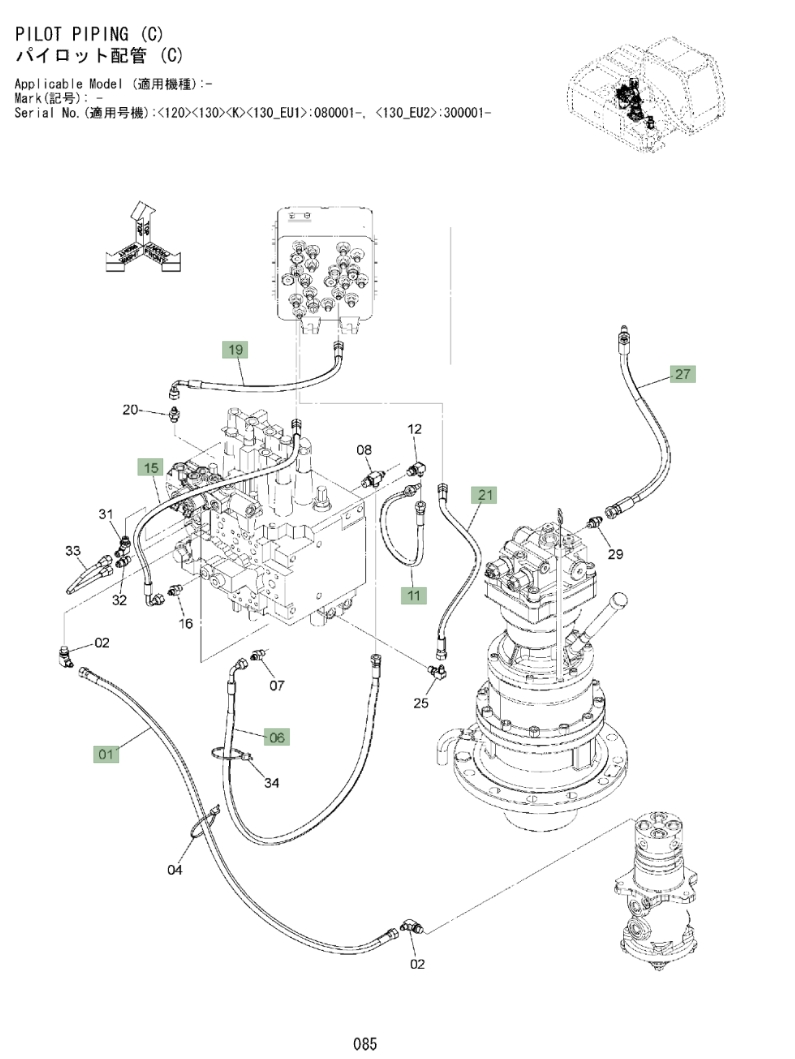

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number 4666881 before removing the hose.
Repair specifications
- Part number
- 4666881
- Diagram pipe number
- 19
- Installation route
- 电磁阀~中转接头
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 500 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
