Individual hose record
9302566 Hose Repair Specifications
Excavator · Hitachi · ZX120-3 · Solenoid Valve
Finished length1,660 mm
Locate this hose

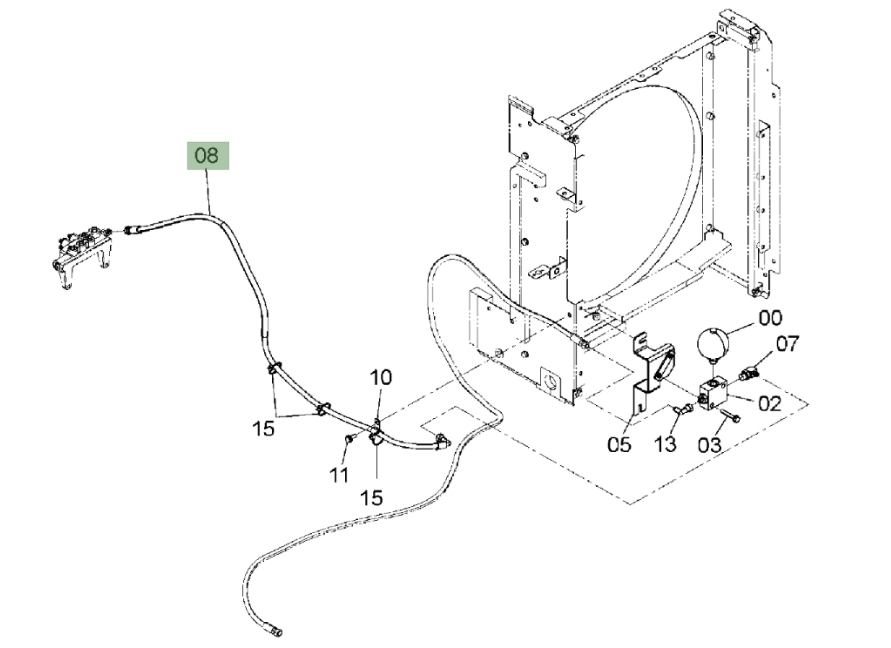

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 9302566 before removing the hose.
Repair specifications
- Part number
- 9302566
- Diagram pipe number
- 8
- Installation route
- 电磁阀~蓄能器
- Hose specification
- DN10;1SN-6;18MPa
- Finished length
- 1,660 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥双六角
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
