Individual hose record
4671329 Hose Repair Specifications
Excavator · Hitachi · ZX120-3 · Attachments – Breaker
Finished length1,250 mm
Locate this hose

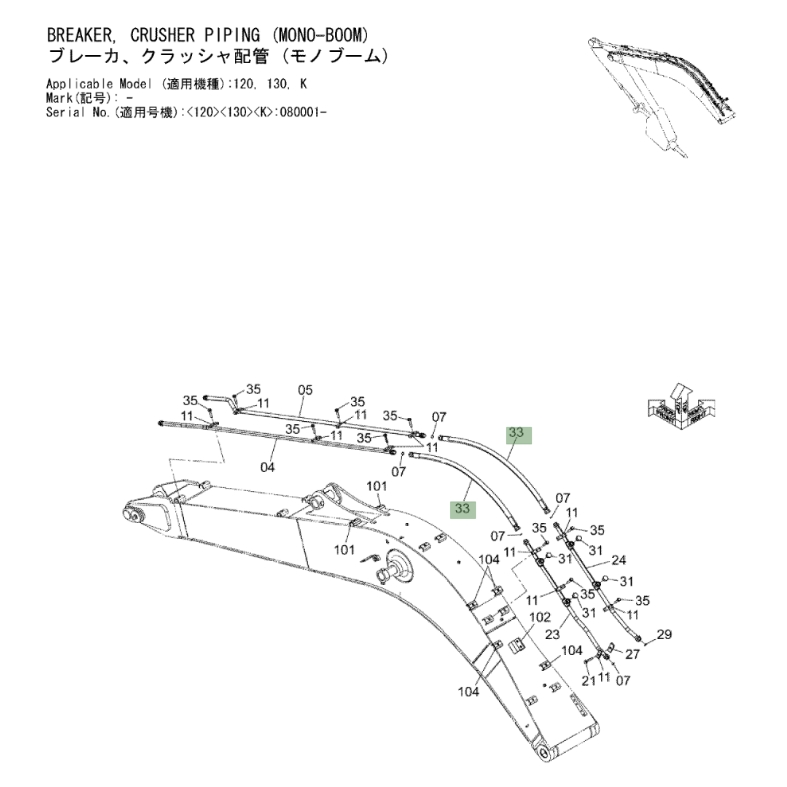

Installation diagram — Pipe No. 33
Locate Pipe No. 33 in the diagram, then confirm part number 4671329 before removing the hose.
Repair specifications
- Part number
- 4671329
- Diagram pipe number
- 33
- Installation route
- 大臂(前段)~大臂(后段)
- Hose specification
- DN19;4SP-12;34.5MPa
- Finished length
- 1,250 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
