Individual hose record
4277895 Hose Repair Specifications
Excavator · Hitachi · EX700 · Attachments
Finished length1,000 mm
Locate this hose

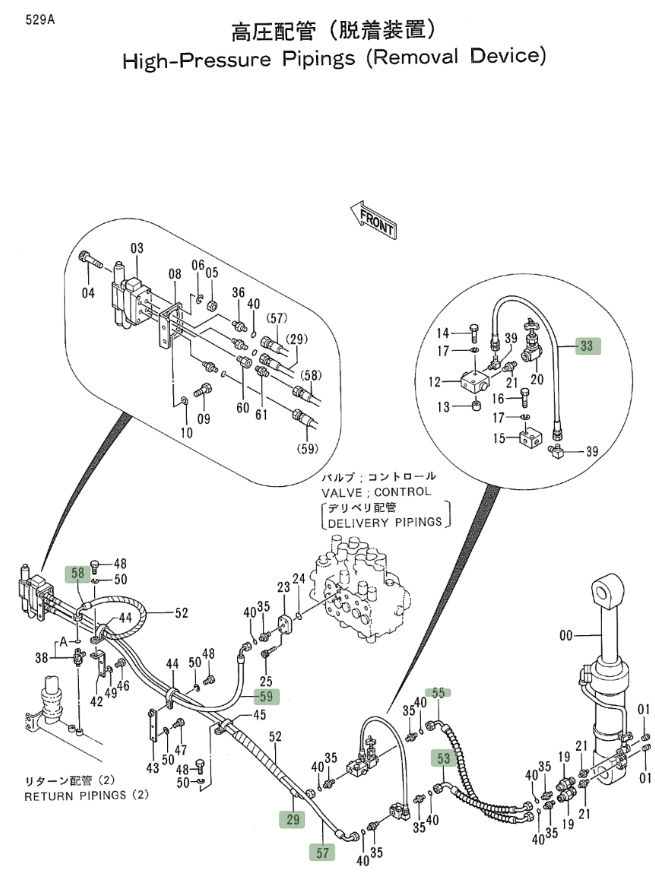

Installation diagram — Pipe No. 58
Locate Pipe No. 58 in the diagram, then confirm part number 4277895 before removing the hose.
Repair specifications
- Part number
- 4277895
- Diagram pipe number
- 58
- Installation route
- 电磁阀(配重自卸)~回油铁管(液压油箱)
- Hose specification
- DN10;2SN-6;33MPa
- Finished length
- 1,000 mm
- Working pressure
- 33 MPa
- Left fitting
- 美制内螺纹74°内锥双六角
- Right fitting
- 美制内螺纹74°内锥双六角
- Quantity
- 1
