Individual hose record
4442649 Hose Repair Specifications
Excavator · Hitachi · ZX120 · Hydraulic Tank
Finished length970 mm
Locate this hose

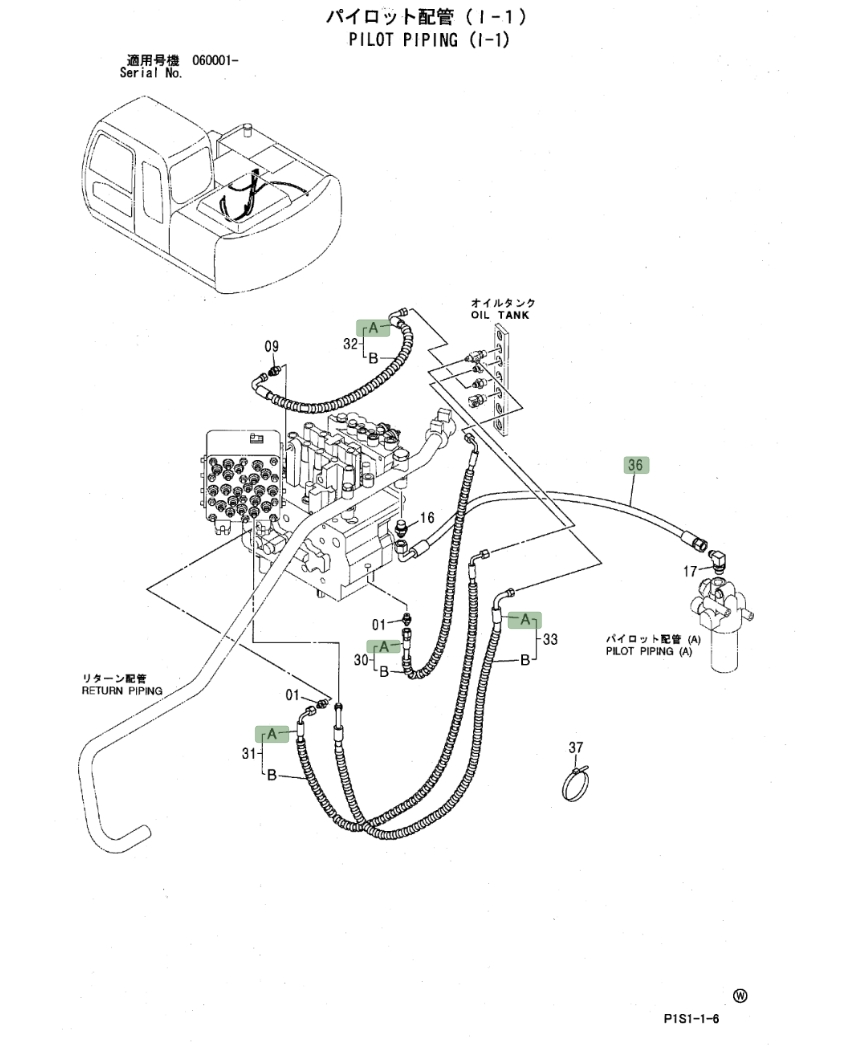

Installation diagram — Pipe No. 36
Locate Pipe No. 36 in the diagram, then confirm part number 4442649 before removing the hose.
Repair specifications
- Part number
- 4442649
- Diagram pipe number
- 36
- Installation route
- 回油铁管(液压油箱)~先导滤芯
- Hose specification
- DN13;2SN-08;27.5MPa
- Finished length
- 970 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
